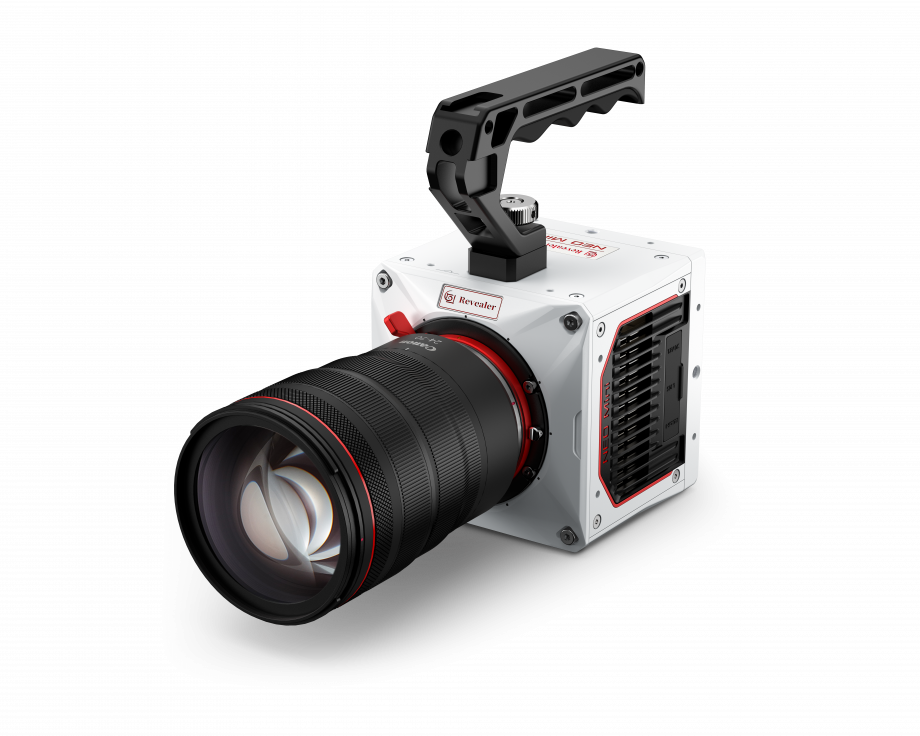

Revealer | High Sensitivity Compact NEO Mini Series
Sensor Type
BSI CMOS
Max Resolution
1280 X 1024
Max Frame Rate
12,500 fps @1280x1024
Min Exposure
150 ns
Lens Mount
EF / F / C; motorized lens supported
Primary Interface
10Gb Ethernet, SDI/HDMI
Description
Specifications
QE Curve
Applications
DownloadsNEO Mini Series: High-Sensitivity Compact High-Speed Cameras

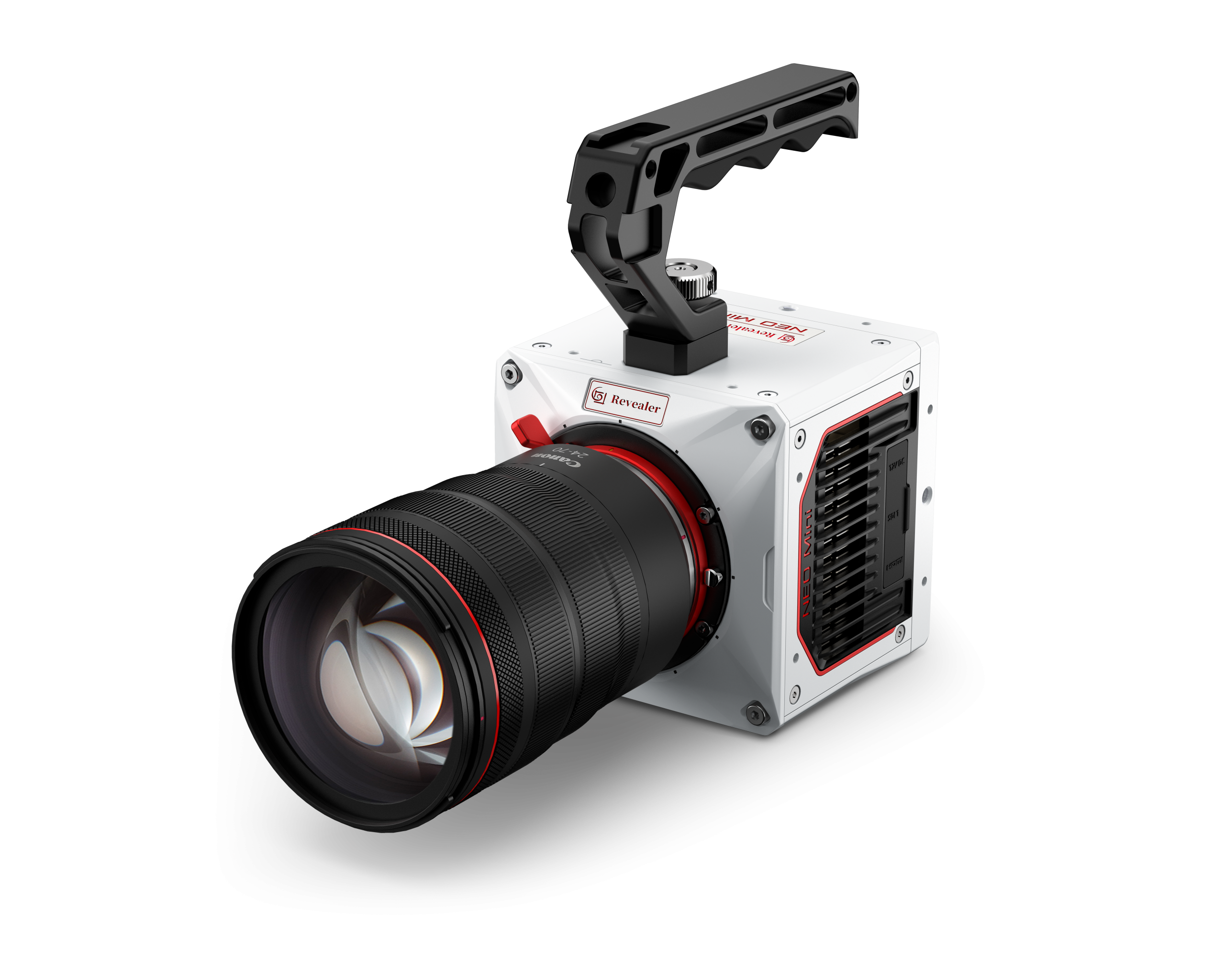

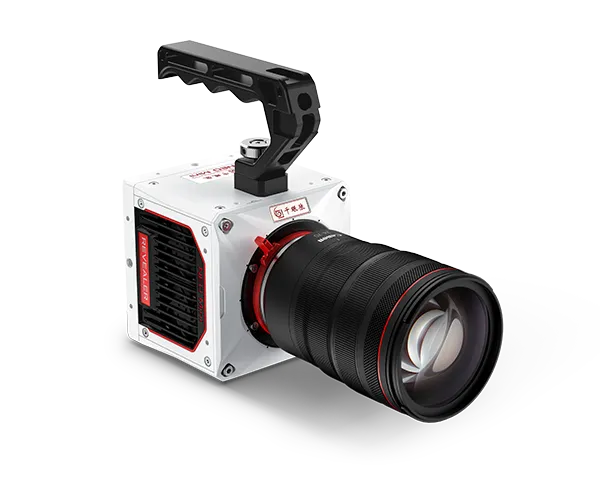

The NEO Mini Series packs high-sensitivity BSI CMOS technology into a compact, lightweight body measuring just 110 × 110 × 105 mm and weighing only 1900 g. Offering full 1280X1024 resolution recording up to 12,500 fps, minimum exposure times down to 150 ns, and up to 4 TB non-volatile flash storage, the NEO Mini is ideal for space-constrained, offline, and remote field deployments.
Key Advantages:
-
Miniaturized Form Factor: Extremely compact (110 × 110 × 105 mm, 1.9 kg) for easy system integration.
-
Onboard Flash Memory: Up to 4 TB customizable non-volatile memory enabling offline high-speed operation.
-
BSI CMOS High Sensitivity: Peak QE of 85% with auto-exposure and double-exposure modes.
-
Versatile Lens Support: Motorized lens support with EF, F, and C mount compatibility.
-
IP64 Protection: Environmentally sealed for tough field conditions.

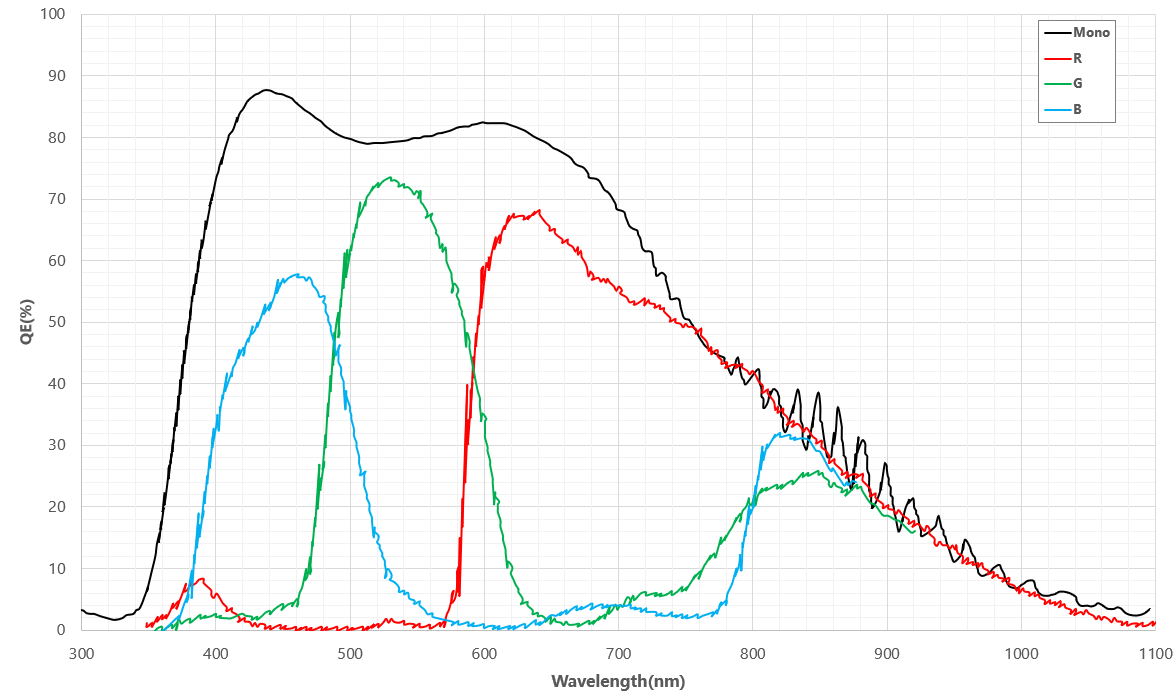

NEO Mini QE Curve

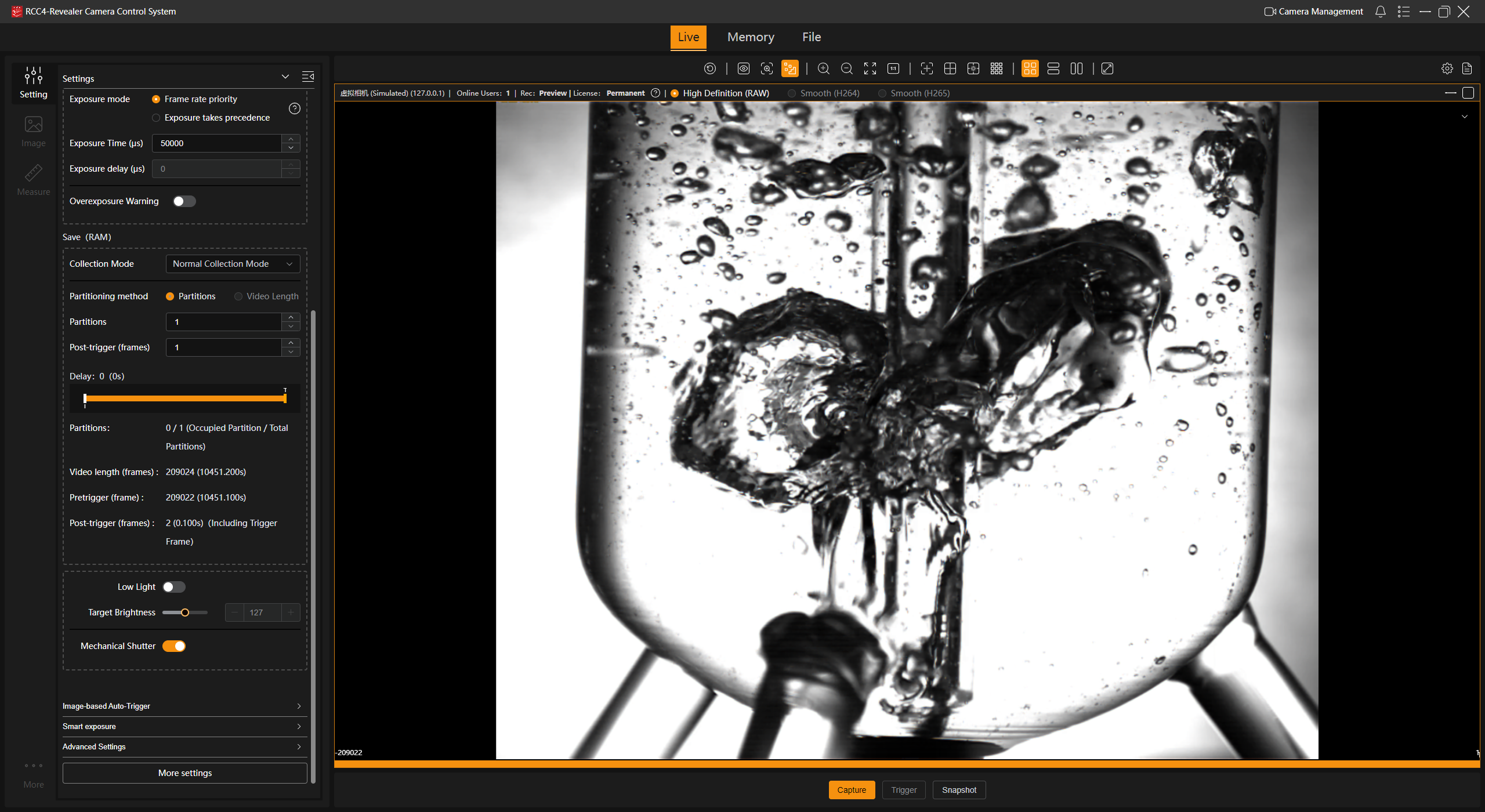

Software: Equipped with the Revealer RCC4.0 Acquisition System for Enhanced Imaging, Processing, and Display
Each Revealer High-Speed camera comes with the Revealer RCC4.0 acquisition suite for imaging, processing, display, and managing storage. Its modular design enables seamless connection, data acquisition, and export operations throughout the entire workflow. It was designed as a multi-device suite, allowing multi-threaded management: shooting, downloading and analysis operate independently without interference. It supports secondary processing of local data, serving not only as data acquisition and control software, but also as a video player. Supports data analysis, point, line, and area measurements.
- Keyframe Detection: Using image change-detection, Keyframe Detection scans ultra-high-speed recordings and marks the segments most likely to contain the moment you care about.
- Variable Frame Rate Recording: With options for an Instantaneous or Gradual frame rate change, it allows to capture efficiently transient events, or continuous processes with slow transitions.
- Dual-Exposure Mode: Switches exposure time during capture so both a very bright and very dark region stay readable.
- Scheduled & Line-Crossing Triggers: Auto-fire at a preset time and count, or fire when a target crosses a preset line to catch a relevant event.
- Multi-Camera Synchronized Capture: All cameras capture on the same frame, driven by camera time-synchronization. Essential for 3D reconstruction and multi-angle analysis.
