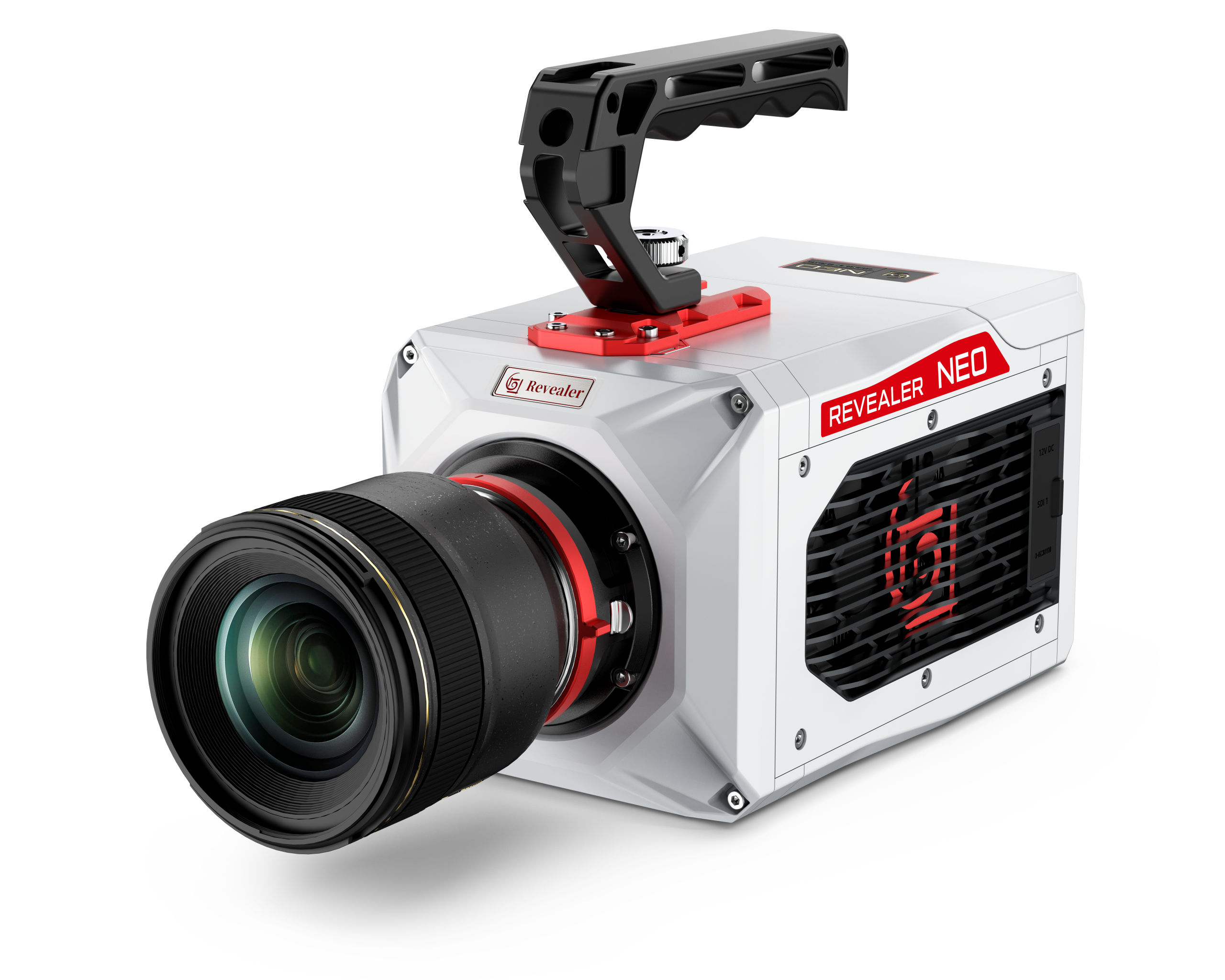

Revealer | High-Sensitivity High-Speed Camera NEO25 (UV)
Sensor Type
Back-Side Illuminated (BSI) CMOS (Global Shutter, UV-Enhanced)
Spectral Sensitivity Range
200 nm – 1100 nm
Sensor Resolution
1280 x 1024
Max Frame Rate
1,000,000 fps at reduced resolution
Min. Exposure
150 ns
Data Interface
10Gb / 1Gb Ethernet
Description
Specifications
QE Curve
Applications
DownloadsNEO 25 UV: High-Sensitivity Ultra-High-Speed UV Camera
The NEO 25 UV high-speed camera represents an advanced imaging solution specifically engineered for high-speed ultraviolet observation, low-light UV emissions, and faint chemiluminescence analysis. Built around a new-generation Back-Side Illuminated (BSI) CMOS sensor with enhanced UV sensitivity, this camera eliminates the need for external image intensifiers while maximizing photon capture efficiency across microsecond exposure times.
Achieving a maximum frame rate of 25,000 fps at full 1280 x 1024Â resolution and reaching up to 1,000,000 fps at reduced ROI (1280 x 16), the NEO 25 UV delivers unprecedented temporal precision for advanced flame diagnostics, plasma dynamics, and high-energy physics research.
Built for demanding laboratory and field environments, the NEO 25 UV features an integrated mechanical shutter, IP64 ingress protection, robust shock and vibration resistance, and high-speed 10Gb Ethernet data offloading.
Key Advantages
-
Direct High-Sensitivity UV Imaging: High-sensitivity BSI CMOS sensor architecture optimized for UV photon capture without relying on external image intensifiers.
-
Ultra-High Temporal Resolution: Full-resolution capture at 25,000 fps (1280 x 1024) and ultra-fast ROI speeds up to 1,000,000 fps (1280 x 16).
-
Microsecond-Level Transient Analysis: Minimum exposure time down to 150 ns and a 250 ns PIV straddle time for capturing rapid transient events.
-
Large Onboard Memory: Equipped with 160 GB or 320 GB high-speed RAM to capture high-frame-rate sequences seamlessly.
-
High-Speed Offloading & Connectivity: Features 10Gb Ethernet, SDI/HDMI direct video output, and DC IRIG B timing code input.
-
Ruggedized Construction: IP64 protection standard, 30g shock resistance, 7.5 Grms vibration resistance, and customizable operating temperatures down to -35°C.

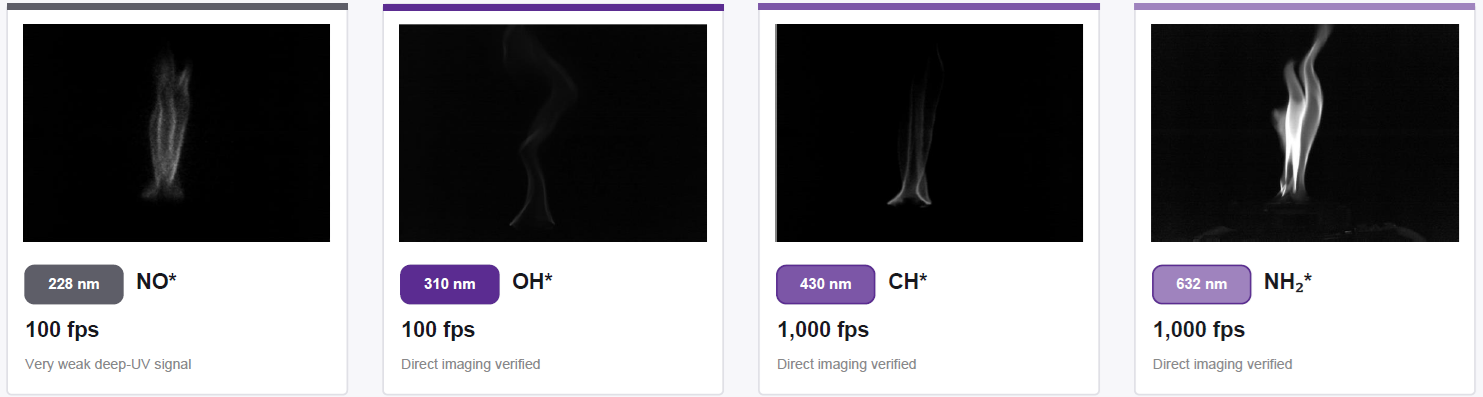

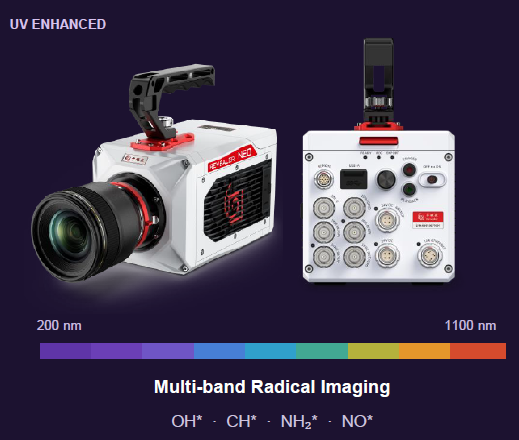

NEO 25 UV – Multiple Bands | Different Reaction Zones
NEO 25 UV significantly expands the radical bands that can be observed directly without an image intensifier. The key limit in high-speed UV imaging is the rapid photon loss per frame as exposure time shortens. NEO UV improves direct UV photon detection at the sensor level, allowing several radical bands to bypass the extra intensifier stage.

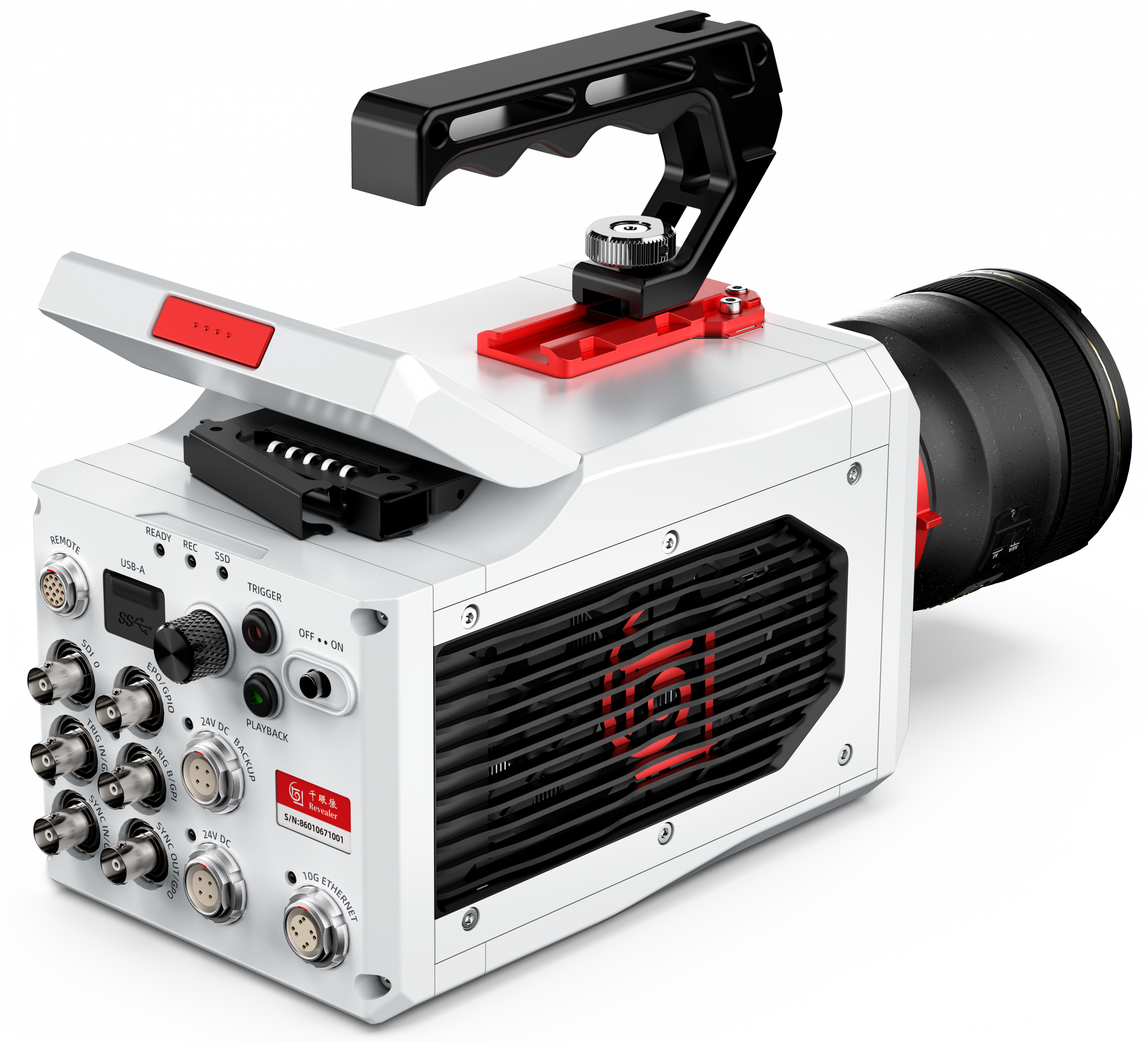

Easy to Use – The Most Comprehensive Hardware Interface Suite to Accommodate Complex Application Scenarios
- Data Transfer Interface: 10 Gigabit Ethernet with backward compatibility to Gigabit Ethernet
- Video Output Interface: 3G-SDI, HDMI
- Advanced I/O Configuration: Expands hardware interface functionality
- Standard EF Mount, supports F and C mounts
- USB Port: Supports external Wi-Fi module for wireless camera control via mobile devices

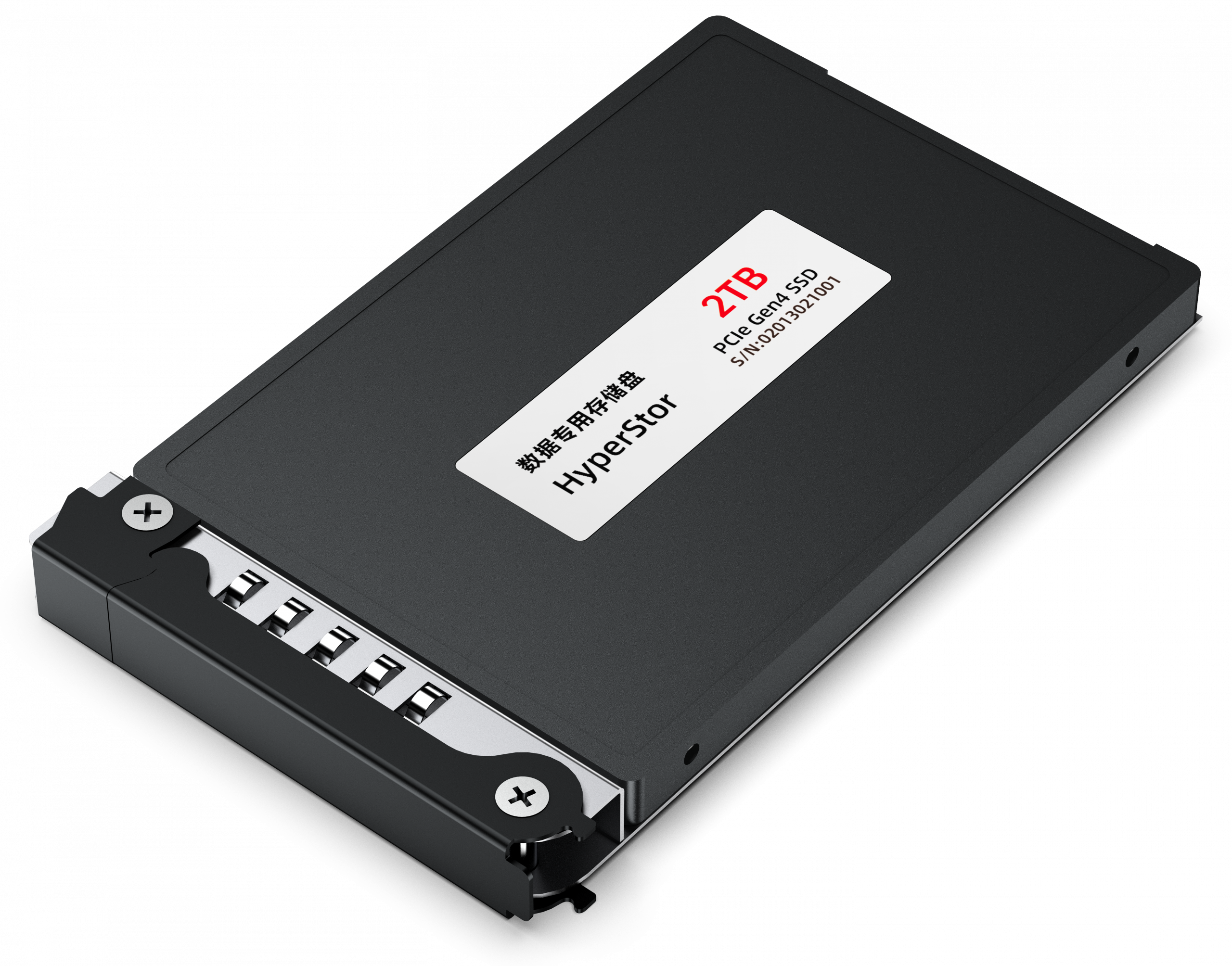

- HyperStor Data Storage Drive: Supports hot-swap functionality, flash storage chips, and secure data backup
- Simultaneous recording and exporting enables real-time transfer of camera data, maximizing storage efficiency
- Capture and download without interruption – experiments conclude as download finish, eliminating wait times

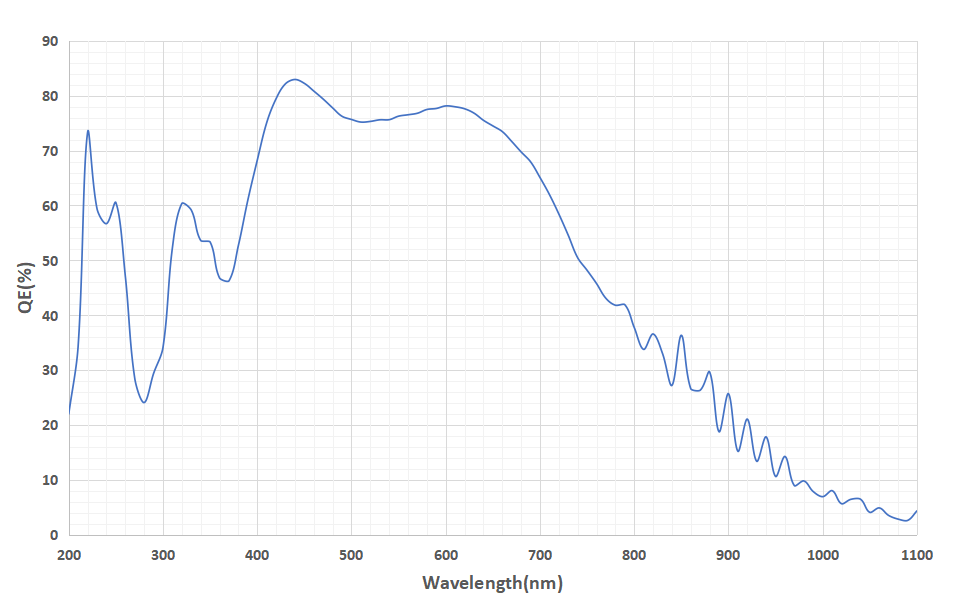

NEO 25 UV Spectral Response
Software: Equipped with the Revealer RCC4.0 Acquisition System for Enhanced Imaging, Processing, and Display
Each Revealer High-Speed camera comes with the Revealer RCC4.0 acquisition suite for imaging, processing, display, and managing storage. Its modular design enables seamless connection, data acquisition, and export operations throughout the entire workflow. It was designed as a multi-device suite, allowing multi-threaded management: shooting, downloading and analysis operate independently without interference. It supports secondary processing of local data, serving not only as data acquisition and control software, but also as a video player. Supports data analysis, point, line, and area measurements.
- Keyframe Detection: Using image change-detection, Keyframe Detection scans ultra-high-speed recordings and marks the segments most likely to contain the moment you care about.
- Variable Frame Rate Recording: With options for an Instantaneous or Gradual frame rate change, it allows to capture efficiently transient events, or continuous processes with slow transitions.
- Dual-Exposure Mode: Switches exposure time during capture so both a very bright and very dark region stay readable.
- Scheduled & Line-Crossing Triggers: Auto-fire at a preset time and count, or fire when a target crosses a preset line to catch a relevant event.
- Multi-Camera Synchronized Capture: All cameras capture on the same frame, driven by camera time-synchronization. Essential for 3D reconstruction and multi-angle analysis.
