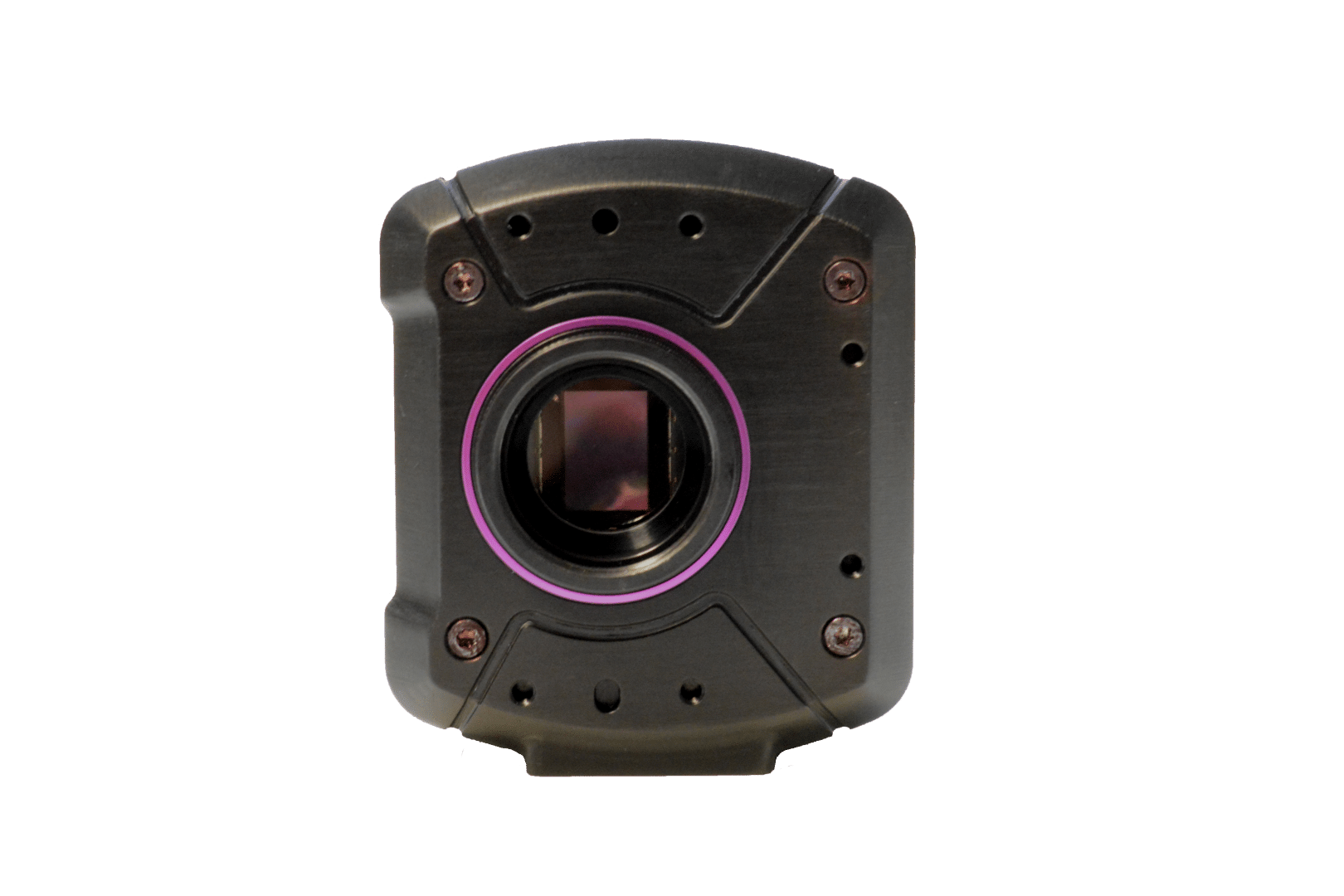

CB2 UV | Global Shutter sCMOS Camera

Sensor Technology

sCMOS

Quantum Efficiency

74% @ 550 nm

Readout Noise

1.40 e- rms

Sensor Resolution

2856 x 2848

Frame Rate

170 fps

Interface

CoaXPress / 10 GigE

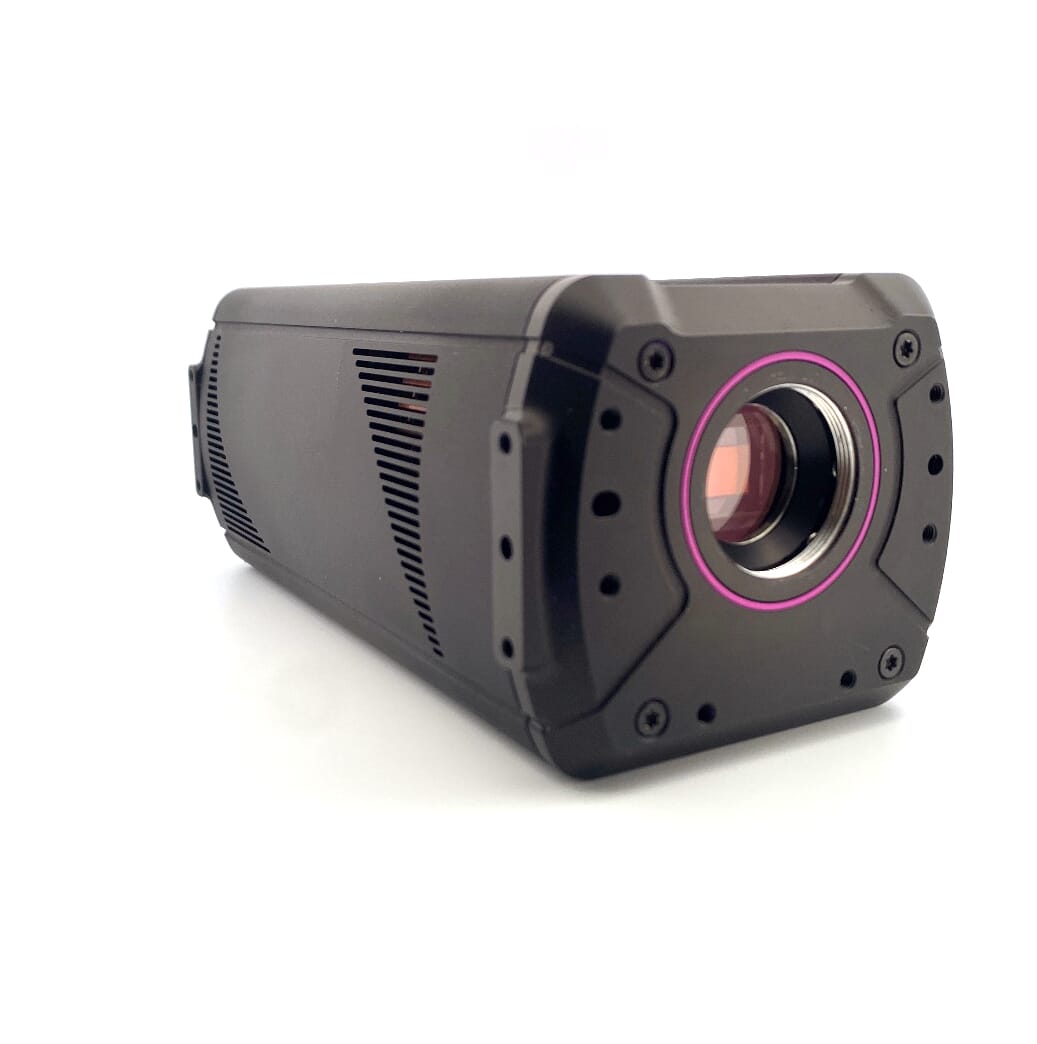

CB2 UV Global Shutter sCMOS Camera for 200-400 nm Imaging

The Andor CB2 UV is a high-speed UV camera that combines a back-illuminated 8.1 MP sensor, a true global shutter and frame rates up to 194 fps. Optimized for the 200-400 nm range, it captures sharp ultraviolet images of moving samples for semiconductor inspection, combustion research, materials testing and life-science imaging.

The 2848 x 2848 sensor uses 2.74 µm pixels across an 11.2 mm diagonal, with 8, 10, 12-bit and 16-bit HDR modes and a 9.2 ke⁻ full well. Andor offers CoaXPress 2.0 and 10 GigE versions, plus air or liquid cooling down to −40 °C for long, low-noise exposures. Axiom Optics helps you match the camera with UV-transmitting optics, frame grabbers and illumination so the full system performs in the ultraviolet.

Global shutter in the UV

All pixels expose together, so moving wafers and fast events keep their true geometry.

Up to 194 fps at 8.1 MP

Over 2,000 fps with small ROIs, and 653 fps with 2×2 binning over CoaXPress.

Cooled for long exposures

Air cooling to −5 °C or liquid cooling to −40 °C keeps dark current low.

Why a Global Shutter Matters for UV Inspection

A CMOS sensor can acquire an image in two ways. A rolling shutter reads the array line by line, so each row is exposed with a small time shift from the next. A global shutter exposes every pixel at the same instant, transfers the image to memory, and reads it out while the next frame is already exposing.

Rolling shutter timing: sensor rows exposed one after another with a time offset
Rolling shutter: each row begins and ends its exposure slightly later than the row before it.
Global shutter timing: all pixels exposed simultaneously, then read out while the next frame exposes
Global shutter: the full array exposes at once, then the frame is read out while the next one is exposing.

Inspection lines and scanning microscopes rarely hold still, and the difference shows up directly in the data:

  • No rolling-shutter distortion. When readout cannot keep pace with the motion, moving objects are skewed and bent. Larger sensors take longer to read, so the effect grows with resolution. This is separate from motion blur, which any camera shows when the exposure is too long for the object speed.
  • True temporal correlation. In rolling shutter, the top and bottom of a frame are captured at different moments. With the CB2 UV, every region of the image belongs to the same instant.
  • Simpler synchronization. Pulsed lasers, strobes and stages sync to one exposure window rather than to a staggered row-by-row timing, which supports shorter cycle times and higher frame rates.
Rotating fan imaged with a rolling shutter camera showing distorted blades, and with a global shutter camera showing true blade shape
A rotating fan imaged in rolling shutter (Nikon D500) and global shutter (C-BLUE One). Rolling-shutter readout bends the blades; global shutter keeps their true shape.

Rolling-shutter pixels are simpler and have traditionally been quieter, which is why many scientific cameras accepted their drawbacks. The CB2 UV pairs a global shutter with a low-noise parallel readout, so fast UV acquisitions no longer force a choice between geometric accuracy and sensitivity. Try the trade-offs below.

Interactive

Global shutter vs rolling shutter on a moving stage

Set the stage speed and exposure to see what reaches the image when a 0.5 mm feature moves under the camera.

Shutter

Stage speed

Exposure

true shapestage motion →
0.02 pxmotion blur
0 pxshape skew
10 mm/sstage speed

Every row integrates at the same instant, so the feature keeps its true shape at any stage speed.

Sharp: motion stays under one pixel.

0.36 pxmotion blur
0 pxshape skew
10 mm/sstage speed

Every row integrates at the same instant, so the feature keeps its true shape at any stage speed.

Sharp: motion stays under one pixel.

3.65 pxmotion blur
0 pxshape skew
10 mm/sstage speed

Every row integrates at the same instant, so the feature keeps its true shape at any stage speed.

Visible smear. Shorten the exposure or add strobed illumination.

0.18 pxmotion blur
0 pxshape skew
100 mm/sstage speed

Every row integrates at the same instant, so the feature keeps its true shape at any stage speed.

Sharp: motion stays under one pixel.

3.65 pxmotion blur
0 pxshape skew
100 mm/sstage speed

Every row integrates at the same instant, so the feature keeps its true shape at any stage speed.

Visible smear. Shorten the exposure or add strobed illumination.

36 pxmotion blur
0 pxshape skew
100 mm/sstage speed

Every row integrates at the same instant, so the feature keeps its true shape at any stage speed.

Visible smear. Shorten the exposure or add strobed illumination.

0.91 pxmotion blur
0 pxshape skew
500 mm/sstage speed

Every row integrates at the same instant, so the feature keeps its true shape at any stage speed.

Sharp: motion stays under one pixel.

18 pxmotion blur
0 pxshape skew
500 mm/sstage speed

Every row integrates at the same instant, so the feature keeps its true shape at any stage speed.

Visible smear. Shorten the exposure or add strobed illumination.

182 pxmotion blur
0 pxshape skew
500 mm/sstage speed

Every row integrates at the same instant, so the feature keeps its true shape at any stage speed.

Visible smear. Shorten the exposure or add strobed illumination.

0.02 pxmotion blur
2.3 pxshape skew
10 mm/sstage speed

Rows read out one after another, so the bottom of the feature is captured later and lands 2.3 px to the right. That skew is a measurement error, not just blur.

Sharp: motion stays under one pixel.

0.36 pxmotion blur
2.3 pxshape skew
10 mm/sstage speed

Rows read out one after another, so the bottom of the feature is captured later and lands 2.3 px to the right. That skew is a measurement error, not just blur.

Sharp: motion stays under one pixel.

3.65 pxmotion blur
2.3 pxshape skew
10 mm/sstage speed

Rows read out one after another, so the bottom of the feature is captured later and lands 2.3 px to the right. That skew is a measurement error, not just blur.

Visible smear. Shorten the exposure or add strobed illumination.

0.18 pxmotion blur
23.4 pxshape skew
100 mm/sstage speed

Rows read out one after another, so the bottom of the feature is captured later and lands 23.4 px to the right. That skew is a measurement error, not just blur.

Sharp: motion stays under one pixel.

3.65 pxmotion blur
23.4 pxshape skew
100 mm/sstage speed

Rows read out one after another, so the bottom of the feature is captured later and lands 23.4 px to the right. That skew is a measurement error, not just blur.

Visible smear. Shorten the exposure or add strobed illumination.

36 pxmotion blur
23.4 pxshape skew
100 mm/sstage speed

Rows read out one after another, so the bottom of the feature is captured later and lands 23.4 px to the right. That skew is a measurement error, not just blur.

Visible smear. Shorten the exposure or add strobed illumination.

0.91 pxmotion blur
116.9 pxshape skew
500 mm/sstage speed

Rows read out one after another, so the bottom of the feature is captured later and lands 116.9 px to the right. That skew is a measurement error, not just blur.

Sharp: motion stays under one pixel.

18 pxmotion blur
116.9 pxshape skew
500 mm/sstage speed

Rows read out one after another, so the bottom of the feature is captured later and lands 116.9 px to the right. That skew is a measurement error, not just blur.

Visible smear. Shorten the exposure or add strobed illumination.

182 pxmotion blur
116.9 pxshape skew
500 mm/sstage speed

Rows read out one after another, so the bottom of the feature is captured later and lands 116.9 px to the right. That skew is a measurement error, not just blur.

Visible smear. Shorten the exposure or add strobed illumination.

Illustrative model: 1x imaging (2.74 µm object pixel), 0.5 mm feature, rolling-shutter comparison assumes a 10 ms frame readout across 2848 rows. Andor specifies a minimum integration time of 4.11 µs (8-bit, CoaXPress).

UV Sensitivity From 200 to 400 nm

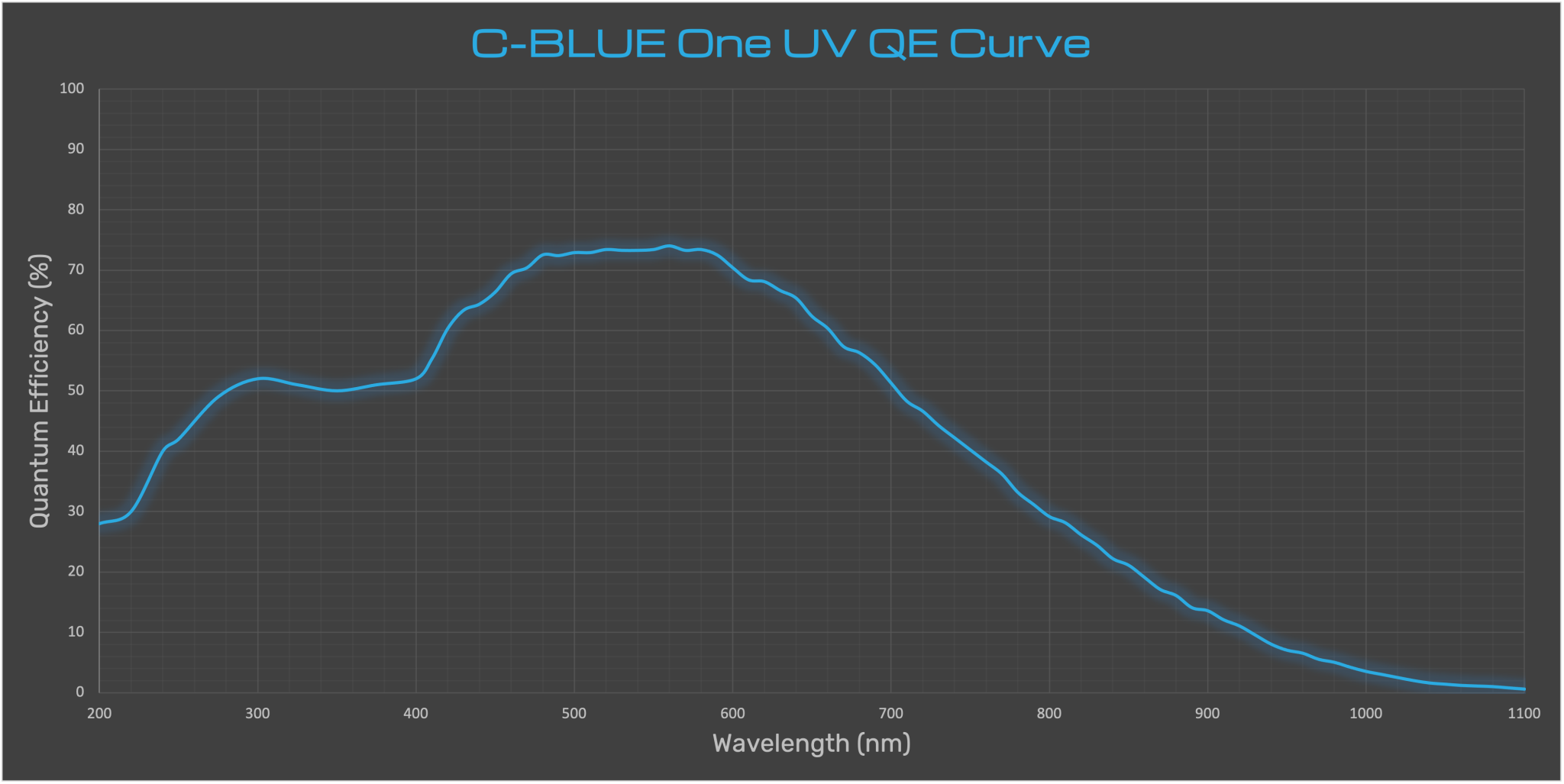

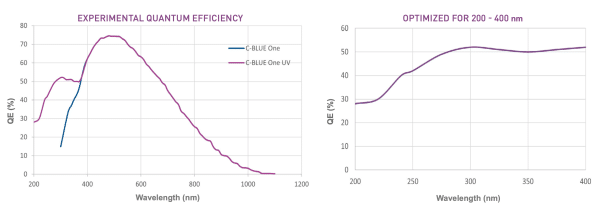

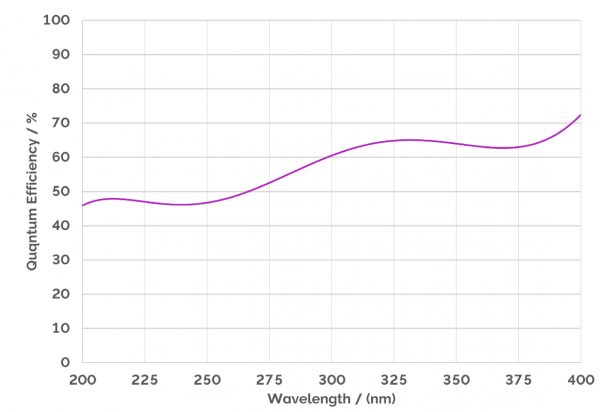

Andor optimizes the CB2 UV for ultraviolet detection, with quantum efficiency above 40% at 300 nm while retaining strong visible response. Each part of the UV spectrum serves different applications and calls for different optics.

Explore

What the CB2 UV sees, band by band

Select a band for applications, sensitivity and optics notes.

Deep UV (UVC)UVBUVA (near UV)Visible and NIRUV optimized 200-400 nm2004006008001000

200-280 nm: Deep UV (UVC)

The shortest wavelengths the CB2 UV is built for. Shorter wavelengths resolve finer detail, which is why deep UV illumination is used for photomask and wafer defect inspection, and biomolecules absorb strongly here, enabling label-free contrast for nucleic acids (near 260 nm) and proteins (near 280 nm).

Oxford Instruments reports QE above 30% at 200 nm.

Optics: Use UV-grade fused silica or calcium fluoride optics. Ordinary glass lenses and windows block this band.

280-315 nm: UVB

A busy band for combustion and plasma research: the OH* radical emits near 306-310 nm, so UVB imaging maps flame fronts, including hydrogen flames that are nearly invisible to the eye. It also serves UV absorption and transmission testing.

Andor specifies QE above 40% at 300 nm.

Optics: Choose UV-transmitting objectives, and add a bandpass filter to isolate the emission line from visible background.

315-400 nm: UVA (near UV)

Reflected-UV imaging reveals surface contamination, residues, scratches and coatings that look identical in visible light. Applications include forensics, cosmetics and sunscreen testing, mineralogy and non-destructive inspection.

Sensitivity stays high into the near UV.

Optics: Many standard lenses transmit poorly below about 350 nm; a dedicated UV lens keeps contrast and focus consistent across the band.

400-1000 nm: Visible and NIR

The back-illuminated sensor keeps working past the UV. One camera can image the same scene in UV and visible light, which simplifies multi-band inspection stations and lets you align the system in visible light first.

Andor specifies QE above 70% at 500 nm.

Optics: UV-optimized coatings trade some visible performance; if your work is visible-only, the standard CB2 may fit better.

Frame Rates, Bit Depth and Interfaces

The CB2 UV reads out through a two-port CoaXPress 2.0 interface or an SFP+ 10 GigE port over copper or fiber. Choose 8-bit for maximum throughput, 12-bit for more gray levels, or the dual-amplifier 16-bit HDR mode for scenes with bright and faint UV features in the same frame. Cropping the readout to fewer rows raises the frame rate, past 2,000 fps for narrow strips.

Configurator

Frame rate and data rate

Combine interface, bit depth and region of interest. Values are Andor’s published rates.

Interface

Bit depth

Rows read (ROI height)

194frames per second
5.15 msframe period
12.59 Gb/simage payload
Link used50%

ROI: 2848 x 2848 pixels (8.11 MP).

243frames per second
4.12 msframe period
12.22 Gb/simage payload
Link used49%

ROI: 2848 x 2208 pixels (6.29 MP).

437frames per second
2.29 msframe period
10.99 Gb/simage payload
Link used44%

ROI: 2848 x 1104 pixels (3.14 MP).

760frames per second
1.32 msframe period
8.87 Gb/simage payload
Link used35%

ROI: 2848 x 512 pixels (1.46 MP).

1,463frames per second
0.68 msframe period
4.27 Gb/simage payload
Link used17%

ROI: 2848 x 128 pixels (0.36 MP).

2,002frames per second
0.50 msframe period
0.73 Gb/simage payload
Link used3%

ROI: 2848 x 16 pixels (0.05 MP).

193frames per second
5.18 msframe period
15.65 Gb/simage payload
Link used63%

ROI: 2848 x 2848 pixels (8.11 MP).

244frames per second
4.10 msframe period
15.34 Gb/simage payload
Link used61%

ROI: 2848 x 2208 pixels (6.29 MP).

444frames per second
2.25 msframe period
13.96 Gb/simage payload
Link used56%

ROI: 2848 x 1104 pixels (3.14 MP).

792frames per second
1.26 msframe period
11.55 Gb/simage payload
Link used46%

ROI: 2848 x 512 pixels (1.46 MP).

1,609frames per second
0.62 msframe period
5.87 Gb/simage payload
Link used23%

ROI: 2848 x 128 pixels (0.36 MP).

2,303frames per second
0.43 msframe period
1.05 Gb/simage payload
Link used4%

ROI: 2848 x 16 pixels (0.05 MP).

127frames per second
7.87 msframe period
12.36 Gb/simage payload
Link used49%

ROI: 2848 x 2848 pixels (8.11 MP).

160frames per second
6.25 msframe period
12.07 Gb/simage payload
Link used48%

ROI: 2848 x 2208 pixels (6.29 MP).

294frames per second
3.40 msframe period
11.09 Gb/simage payload
Link used44%

ROI: 2848 x 1104 pixels (3.14 MP).

530frames per second
1.89 msframe period
9.27 Gb/simage payload
Link used37%

ROI: 2848 x 512 pixels (1.46 MP).

1,110frames per second
0.90 msframe period
4.86 Gb/simage payload
Link used19%

ROI: 2848 x 128 pixels (0.36 MP).

1,628frames per second
0.61 msframe period
0.89 Gb/simage payload
Link used4%

ROI: 2848 x 16 pixels (0.05 MP).

65frames per second
15.38 msframe period
8.44 Gb/simage payload
Link used34%

ROI: 2848 x 2848 pixels (8.11 MP).

83frames per second
12.05 msframe period
8.35 Gb/simage payload
Link used33%

ROI: 2848 x 2208 pixels (6.29 MP).

156frames per second
6.41 msframe period
7.85 Gb/simage payload
Link used31%

ROI: 2848 x 1104 pixels (3.14 MP).

297frames per second
3.37 msframe period
6.93 Gb/simage payload
Link used28%

ROI: 2848 x 512 pixels (1.46 MP).

718frames per second
1.39 msframe period
4.19 Gb/simage payload
Link used17%

ROI: 2848 x 128 pixels (0.36 MP).

1,221frames per second
0.82 msframe period
0.89 Gb/simage payload
Link used4%

ROI: 2848 x 16 pixels (0.05 MP).

140frames per second
7.14 msframe period
9.08 Gb/simage payload
Link used91%

ROI: 2848 x 2848 pixels (8.11 MP).

179frames per second
5.59 msframe period
9.00 Gb/simage payload
Link used90%

ROI: 2848 x 2208 pixels (6.29 MP).

333frames per second
3.00 msframe period
8.38 Gb/simage payload
Link used84%

ROI: 2848 x 1104 pixels (3.14 MP).

631frames per second
1.58 msframe period
7.36 Gb/simage payload
Link used74%

ROI: 2848 x 512 pixels (1.46 MP).

1,463frames per second
0.68 msframe period
4.27 Gb/simage payload
Link used43%

ROI: 2848 x 128 pixels (0.36 MP).

2,002frames per second
0.50 msframe period
0.73 Gb/simage payload
Link used7%

ROI: 2848 x 16 pixels (0.05 MP).

95frames per second (packed)
10.53 msframe period
7.71 Gb/simage payload
Link used77%

ROI: 2848 x 2848 pixels (8.11 MP).

121frames per second (packed)
8.26 msframe period
7.61 Gb/simage payload
Link used76%

ROI: 2848 x 2208 pixels (6.29 MP).

230frames per second (packed)
4.35 msframe period
7.23 Gb/simage payload
Link used72%

ROI: 2848 x 1104 pixels (3.14 MP).

446frames per second (packed)
2.24 msframe period
6.50 Gb/simage payload
Link used65%

ROI: 2848 x 512 pixels (1.46 MP).

1,321frames per second (packed)
0.76 msframe period
4.82 Gb/simage payload
Link used48%

ROI: 2848 x 128 pixels (0.36 MP).

2,303frames per second (packed)
0.43 msframe period
1.05 Gb/simage payload
Link used10%

ROI: 2848 x 16 pixels (0.05 MP).

96frames per second (packed)
10.42 msframe period
9.34 Gb/simage payload
Link used93%

ROI: 2848 x 2848 pixels (8.11 MP).

122frames per second (packed)
8.20 msframe period
9.21 Gb/simage payload
Link used92%

ROI: 2848 x 2208 pixels (6.29 MP).

233frames per second (packed)
4.29 msframe period
8.79 Gb/simage payload
Link used88%

ROI: 2848 x 1104 pixels (3.14 MP).

458frames per second (packed)
2.18 msframe period
8.01 Gb/simage payload
Link used80%

ROI: 2848 x 512 pixels (1.46 MP).

1,110frames per second (packed)
0.90 msframe period
4.86 Gb/simage payload
Link used49%

ROI: 2848 x 128 pixels (0.36 MP).

1,628frames per second (packed)
0.61 msframe period
0.89 Gb/simage payload
Link used9%

ROI: 2848 x 16 pixels (0.05 MP).

65frames per second
15.38 msframe period
8.44 Gb/simage payload
Link used84%

ROI: 2848 x 2848 pixels (8.11 MP).

83frames per second
12.05 msframe period
8.35 Gb/simage payload
Link used84%

ROI: 2848 x 2208 pixels (6.29 MP).

156frames per second
6.41 msframe period
7.85 Gb/simage payload
Link used78%

ROI: 2848 x 1104 pixels (3.14 MP).

297frames per second
3.37 msframe period
6.93 Gb/simage payload
Link used69%

ROI: 2848 x 512 pixels (1.46 MP).

718frames per second
1.39 msframe period
4.19 Gb/simage payload
Link used42%

ROI: 2848 x 128 pixels (0.36 MP).

1,221frames per second
0.82 msframe period
0.89 Gb/simage payload
Link used9%

ROI: 2848 x 16 pixels (0.05 MP).

Full-width ROIs, measured at 20 °C. Link use compares image payload with 25 Gb/s (two CXP-12 lanes) or 10 Gb/s (10 GigE). 2×2 on-chip binning raises full-frame speed to 653 fps (8-bit, CoaXPress) or 517 fps (8-bit, 10 GigE).

Field of View and Resolution at the Sample

The square 7.80 x 7.80 mm sensor suits round optical fields and square die. With 2.74 µm pixels, a modest objective magnification already reaches sub-micron sampling, and on-chip 2×2 binning doubles the effective pixel to 5.48 µm for four times the signal per pixel when light is scarce.

Calculator

Field of view and pixel size at the sample

Pick your objective or lens magnification, with or without 2×2 binning.

Magnification

Binning

10 mm die (blue) vs camera field (green)
5.48 µmobject-side pixel
15.61 x 15.61 mmfield of view
10.96 µmfinest feature at Nyquist
10 mm die (blue) vs camera field (green)
11.0 µmobject-side pixel
15.61 x 15.61 mmfield of view
21.92 µmfinest feature at Nyquist
10 mm die (blue) vs camera field (green)
2.74 µmobject-side pixel
7.80 x 7.80 mmfield of view
5.48 µmfinest feature at Nyquist
10 mm die (blue) vs camera field (green)
5.48 µmobject-side pixel
7.80 x 7.80 mmfield of view
10.96 µmfinest feature at Nyquist
10 mm die (blue) vs camera field (green)
1.37 µmobject-side pixel
3.90 x 3.90 mmfield of view
2.74 µmfinest feature at Nyquist
10 mm die (blue) vs camera field (green)
2.74 µmobject-side pixel
3.90 x 3.90 mmfield of view
5.48 µmfinest feature at Nyquist
10 mm die (blue) vs camera field (green)
0.55 µmobject-side pixel
1.56 x 1.56 mmfield of view
1.10 µmfinest feature at Nyquist
10 mm die (blue) vs camera field (green)
1.10 µmobject-side pixel
1.56 x 1.56 mmfield of view
2.19 µmfinest feature at Nyquist
10 mm die (blue) vs camera field (green)
0.27 µmobject-side pixel
780 x 780 µmfield of view
0.55 µmfinest feature at Nyquist
10 mm die (blue) vs camera field (green)
0.55 µmobject-side pixel
780 x 780 µmfield of view
1.10 µmfinest feature at Nyquist
10 mm die (blue) vs camera field (green)
0.14 µmobject-side pixel
390 x 390 µmfield of view
0.27 µmfinest feature at Nyquist

At this magnification the objective limits resolution first: λ/(2NA) is about 0.15 µm at 266 nm with NA 0.9.

10 mm die (blue) vs camera field (green)
0.27 µmobject-side pixel
390 x 390 µmfield of view
0.55 µmfinest feature at Nyquist

Square 2848 x 2848 active area, 7.80 mm on a side. Nyquist feature is two object-side pixels; optics are assumed perfect.

Cooling and Long Exposures

Andor offers air cooling to −5 °C at 25 °C ambient and liquid cooling to −20 °C with 25 °C coolant or −40 °C with 5 °C coolant. The fan can be switched off entirely for vibration-sensitive work, and exposures of several hours are possible for weak UV emission.

Estimator

Dark signal vs exposure and cooling

See how much dark charge builds up in long UV exposures, and when cooling matters.

Sensor temperature

Exposure

0.0001 e⁻dark signal per pixel
0.012 e⁻dark shot noise (rms)
10 msexposure
Dark signal0.0001 e⁻

Dark noise is far below one electron. Read noise, not dark current, sets the noise floor.

0.014 e⁻dark signal per pixel
0.118 e⁻dark shot noise (rms)
1 sexposure
Dark signal0.014 e⁻

Dark noise is far below one electron. Read noise, not dark current, sets the noise floor.

0.140 e⁻dark signal per pixel
0.374 e⁻dark shot noise (rms)
10 sexposure
Dark signal0.140 e⁻

Dark noise is far below one electron. Read noise, not dark current, sets the noise floor.

0.840 e⁻dark signal per pixel
0.917 e⁻dark shot noise (rms)
1 minexposure
Dark signal0.840 e⁻

Dark noise is approaching the read-noise level. For longer exposures, cool the sensor.

8.4 e⁻dark signal per pixel
2.9 e⁻dark shot noise (rms)
10 minexposure
Dark signal8.4 e⁻

Dark noise now competes with read noise and faint signals. Liquid cooling pays off at this exposure.

50.4 e⁻dark signal per pixel
7.1 e⁻dark shot noise (rms)
1 hexposure
Dark signal50.4 e⁻

Dark noise now competes with read noise and faint signals. Liquid cooling pays off at this exposure.

0.0000 e⁻dark signal per pixel
0.0010 e⁻dark shot noise (rms)
10 msexposure
Dark signal0.0000 e⁻

Dark noise is far below one electron. Read noise, not dark current, sets the noise floor.

0.0001 e⁻dark signal per pixel
0.010 e⁻dark shot noise (rms)
1 sexposure
Dark signal0.0001 e⁻

Dark noise is far below one electron. Read noise, not dark current, sets the noise floor.

0.0010 e⁻dark signal per pixel
0.032 e⁻dark shot noise (rms)
10 sexposure
Dark signal0.0010 e⁻

Dark noise is far below one electron. Read noise, not dark current, sets the noise floor.

0.0060 e⁻dark signal per pixel
0.077 e⁻dark shot noise (rms)
1 minexposure
Dark signal0.0060 e⁻

Dark noise is far below one electron. Read noise, not dark current, sets the noise floor.

0.060 e⁻dark signal per pixel
0.245 e⁻dark shot noise (rms)
10 minexposure
Dark signal0.060 e⁻

Dark noise is far below one electron. Read noise, not dark current, sets the noise floor.

0.360 e⁻dark signal per pixel
0.600 e⁻dark shot noise (rms)
1 hexposure
Dark signal0.360 e⁻

Dark noise is approaching the read-noise level. Colder coolant, down to −40 °C at the sensor, pushes it lower.

Dark current: 0.014 e⁻/pixel/s at +20 °C (Andor CB2 specification sheet) and 0.0001 e⁻/pixel/s at −20 °C (Oxford Instruments CB2 Series announcement). Dark shot noise is the square root of the dark signal. Bar uses a log scale.

Choosing a UV Camera

Axiom Optics carries several UV camera technologies. The CB2 UV leads when speed, resolution and a global shutter matter together; other applications are better served by compact, deep-cooled or intensified cameras.

Selector

Is the CB2 UV the right UV camera?

What matters most?

You are on the right page: CB2 UV

Global shutter, 8.1 MP and up to 194 fps at full frame make the CB2 UV the pick for moving parts, scanning stages and fast UV events.

Alvium 812 UV

The Alvium 812 UV brings UV sensitivity to a compact machine-vision format for OEM systems where size and cost lead the requirements.

ELSE-i or ELSE-s deep-cooled CCD

For faint UV signals integrated over minutes to hours, the deep-cooled ELSE-i (imaging) and ELSE-s (spectroscopy) CCDs minimize dark current.

TRiCAM intensified camera

When you need to gate out background or resolve events in time, the TRiCAM time-resolved intensified camera is built for it.

Standard CB2

If you do not need UV, the Andor CB2 global-shutter sCMOS family covers visible and NIR imaging.

Choose what matters most in your UV application.

Compare every option on the UV cameras page, or pair your camera with CERCO UV lenses.

CB2 UV Key Specifications

Sensor
Back-illuminated sCMOS, global shutter
Resolution
2848 x 2848 (8.1 MP)
Pixel size
2.74 µm (5.48 µm with 2×2 binning)
Sensor diagonal
11.2 mm
UV optimization
200-400 nm
Quantum efficiency
>40% at 300 nm, >70% at 500 nm
Max frame rate
194 fps full frame (8-bit, CoaXPress)
Bit depth
8, 10, 12-bit; 16-bit HDR
Full well
9.2 ke⁻
Dark current
0.014 e⁻/pixel/s at +20 °C
Cooling
Air to −5 °C; liquid to −40 °C
Interfaces
CoaXPress 2.0 (2 ports) or SFP+ 10 GigE
Lens mount
C-mount
Size and weight
183.7 x 93 x 77.5 mm (CXP), 1.3 kg

CB2 UV FAQ

What is the CB2 UV camera?

The CB2 UV is a global-shutter scientific CMOS camera from Andor, an Oxford Instruments company, optimized for ultraviolet imaging from 200 to 400 nm. It uses a back-illuminated 2848 x 2848 (8.1 MP) sensor with 2.74 µm pixels and reaches up to 194 frames per second at full resolution.

What wavelengths does the CB2 UV cover?

It is optimized for 200-400 nm and remains sensitive into the visible and near infrared. Andor specifies quantum efficiency above 40% at 300 nm and above 70% at 500 nm, and Oxford Instruments reports QE above 30% at 200 nm.

How fast is the CB2 UV?

Over CoaXPress 2.0, Andor lists 194 fps at full frame in 8-bit mode, 127 fps in 12-bit and 65 fps in 16-bit HDR. Over 10 GigE it reaches 140 fps in 8-bit. Smaller regions of interest exceed 2,000 fps, and 2×2 binning gives 653 fps at full frame (8-bit, CoaXPress).

Why does a global shutter matter for UV inspection?

A global shutter exposes every pixel at the same moment, so moving wafers, webs or parts are captured without the geometric skew a rolling shutter introduces. Combined with a minimum integration time of a few microseconds, it freezes fast motion for accurate dimensional and defect measurements.

How is the CB2 UV cooled?

Andor lists air cooling to -5 °C at 25 °C ambient and liquid cooling to -20 °C with 25 °C coolant or -40 °C with 5 °C coolant. The fan can be switched off for vibration-sensitive setups. When running cold, keep the coolant above the dew point to avoid condensation.

Which interfaces and software does it support?

The CB2 UV is offered with a two-port CoaXPress 2.0 interface or an SFP+ 10 GigE interface over copper or fiber, both GigE Vision and GenICam compliant. Software includes the First Light Vision GUI and µManager, with SDKs for C, C++, C#, Python, LabVIEW and MATLAB. Andor supports Euresys and Zebra frame grabbers.

What lens should I use with a UV camera?

Use optics that transmit your wavelength. Most standard glass lenses lose transmission below about 350 nm, so deep UV work calls for fused silica or calcium fluoride optics. The CB2 UV has a C-mount, and Axiom Optics offers CERCO UV lenses designed for the ultraviolet.

Is the CB2 UV the same as the C-BLUE One UV?

The CB2 UV is the current Andor generation of the UV global-shutter camera that Axiom Optics previously listed as the C-BLUE One UV from First Light Imaging. Specifications differ between generations, so use the CB2 UV datasheet values when you plan a new system.

Plan your UV imaging system

Share your wavelength, field of view and speed targets. Axiom Optics will confirm the configuration and recommend UV optics, grabbers and cooling.

Shop related products

Contact Us

No Fields Found.

Tech Support

Contact Us

Scroll to Top
