VISWIR Hyper-APO lens avoid focus shift
SWIR lens 1" KOWA

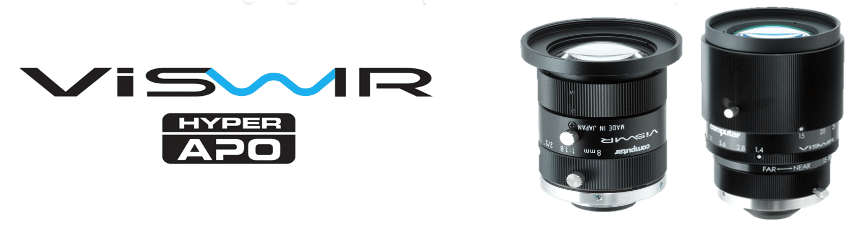

ViSWIR Hyper-APO | 2/3″ format ViSWR C-mount lenses by Computar

Lens format

2/3"

Lens mount

C-mount

Transmission

VIS + SWIR 400-1700 nm

Hyper APO

No focus shift 400-1700 nm

Iris range

F1.4 - F/16

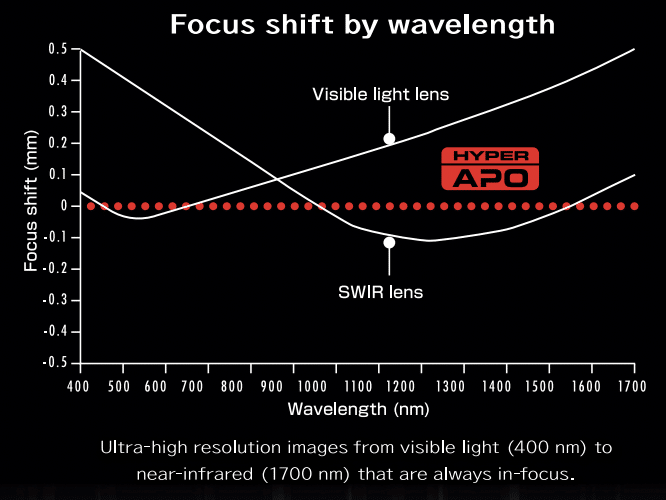

Fully corrected focus shift in visible and SWIR range (400nm-1,700nm): “By using ultra-low dispersion glass and low partial dispersion glass paired with superior design technology developed from Computar’s extensive optics experience, the focus shift is minimized within a few micron mm at a super wide range of wavelengths.” according to Mr. Katsuya Hirano,  Chief Optical Designer, CBC Group. “With this, spectral imaging is achievable with a single sensor camera by simply syncing the lighting.”

With ViSWIR HYPER-APO, it is unnecessary to adjust focus for different wavelengths or to keep the resolution high from short to long working distances. By adopting an APO floating design*, the focus shift is reduced at any wavelength and any working distance. This function makes the series ideal for multiple applications, including machine vision, UAV, and remote sensing.

Fully corrected focus shift in visible and SWIR range (400nm-1,700nm): “By using ultra-low dispersion glass and low partial dispersion glass paired with superior design technology developed from Computar’s extensive optics experience, the focus shift is minimized within a few micron mm at a super wide range of wavelengths.” according to Mr. Katsuya Hirano,  Chief Optical Designer, CBC Group. “With this, spectral imaging is achievable with a single sensor camera by simply syncing the lighting.”

With ViSWIR HYPER-APO, it is unnecessary to adjust focus for different wavelengths or to keep the resolution high from short to long working distances. By adopting an APO floating design*, the focus shift is reduced at any wavelength and any working distance. This function makes the series ideal for multiple applications, including machine vision, UAV, and remote sensing.Computar - ViSWIR lens series - Hyper APO

Text1

Fixed focal length 8, 12, 16, 25 mm

Text2

VIS + SWIR 400 – 1700 nm

Text3

2/3" format

Text4

C-mount

Text5

Broadband use with no focus shift
