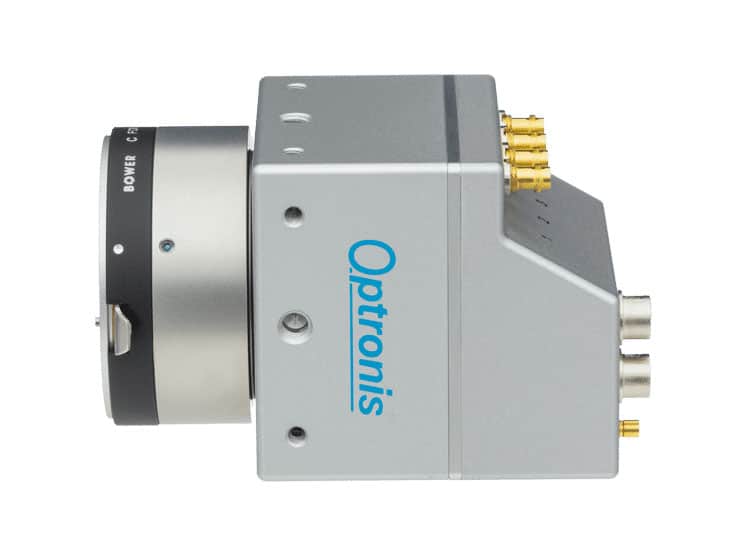

CyclonePlus Series | High-Speed Industrial Cameras
Resolution
1, 2, 5, 9, 16, 21, 25, and 65 MP
Interface
CXP-12 interface - 4x 12.5 Gb/s
Sensor Mode
Global shutter

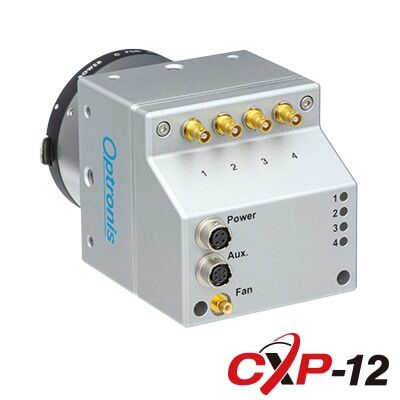

Connectors
x4, HD-BNC
Options
Heatsink or cooling fan
Lens mount
C-mount, F-mount, M42 mount
European Availability
Available at Axiom Optics Europe

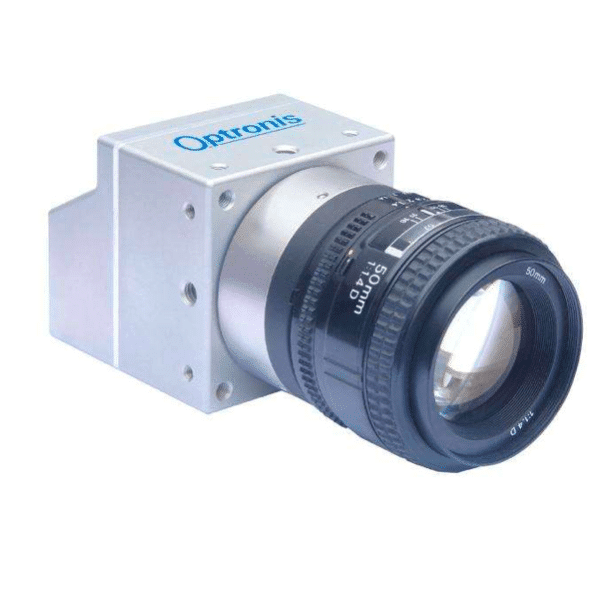

Coaxpress Cameras for High-speed Machine Vision Applications
The CamPerform-Cyclone series cameras represent advanced high-speed CMOS camera solutions for machine vision applications. Using a fast CoaXPress 2.0 interface, these cameras facilitate data transmission rates of up to 12.5 Gb per second per channel. By combining up to 4 channels, a total bandwidth of 50 Gb per second can be achieved. Integration of high-performance image sensors ensures that speed is not compromised despite the constraints of transfer rates.
The CamPerform-Cyclone series cameras enable real-time image transfer at both high-speed and high spatial resolution, revolutionizing possibilities in various fields such as machine vision, medical imaging, life sciences, broadcast, and defense.
CoaXPress (CXP) stands as the premier standard globally for high-speed imaging, widely adopted in professional and industrial imaging applications.
CoaXPress advantages:
- High bandwidths at maximum cable lengths (12.5 Gbps per channel), scalable up to 50 Gbps with 4 channels, ensuring maximum system speed and flexibility
- Micro-BNC (HD-BNCâ„¢) connectors for reliable connection allows for quick and easy connects and disconnects with trusted push and turn, bayonet-style positive lock.
- Long cable support with up to 40 meters at CXP-12 speed (12.5 Gbps per link).
- Power over CoaXPress (PoCXP) powers your camera with up to 17 W per channel under 24 VDC with automatic device detection, measurement and overload protection.
- Direct GPU transfer eliminates unnecessary system memory copies, lowers CPU overhead, and reduces latency, resulting in significant performance improvements in data transfer times for applications. Sample programs for AMD DirectGMA and NVIDIA (CUDA) available.
- General purpose I/O lines compatible with a wide range of sensors and motion encoders. High-speed differential inputs: Quadrature motion encoder support up to 5 MHz. Isolated current-sense inputs: 5V, 12V, 24V signaling voltages accepted, up to 50 kHz, individual galvanic isolation up to 250VDC and 170VAC RMS. High-speed 5V-compliant TTL inputs/ LVTTL outputs.
- Windows, Linux and macOS drivers available, including support for Intel 64-bit platforms as well as ARM 64-bit platform.
Use this frame rate calculator for the cyclone series.
Click HERE to view more industrial cameras.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
| Model | CyclonePlus 65 | CyclonePlus 25 | CyclonePlus 21 | CyclonePlus 16 | CyclonePlus 9 | CyclonePlus 5 | CyclonePlus 2 | CyclonePlus 1HS |
|---|---|---|---|---|---|---|---|---|
| Sensor resolution | 9,344 x 7,000 | 5120 x 5120 | 5,120 x 4,096 | 4,672 x 3,416 | 4,096 x 2,304 | 2,560 x 1,920 | 1,920 x 1,080 | 1,280 x 860 |
| Frame rate at max res (fps) – 8-bit | 71 | 150 | 230 | 284 | 509 | 705 | 2158 | 3518 |
| Sensor Model | GMAX3265 | GMAX0505 | GSPRINT4521 | LUX160 | LUX9506 | LUX51 | LUX19HS | LUX13HS |
| Pixel size | 3.2 µm | 2.5 µm | 4.5 µm | 3.9 µm | 6.5 µm | 5 µm | 10 µm | 13.7 µm |
| Sensor Type | Mono or Color | Mono or Color | Mono or Color | Mono or Color | Mono or Color | Mono or Color | Mono or Color | Mono or Color |
| A/D conversion | 10-bit, 8-bit | 10-bit, 8-bit | 10-bit, 8-bit | 10-bit, 8-bit | 8 bit | 10-bit, 8-bit | 10-bit, 8-bit | 10-bit, 8-bit |
| Interface | CoaXPress (4 Channel, CXP-12) / DIN 1.0/2.3 connectors 12.5 Gbit/s | CoaXPress (4 Channel, CXP-12) / DIN 1.0/2.3 connectors 12.5 Gbit/s | CoaXPress (4 Channel, CXP-12) / DIN 1.0/2.3 connectors 12.5 Gbit/s | CoaXPress (4 Channel, CXP-12) / DIN 1.0/2.3 connectors 12.5 Gbit/s | CoaXPress 2.0 Micro-BNC (HD-BNC) connectors | CoaXPress (4 Channel, CXP-12) / DIN 1.0/2.3 connectors 12.5 Gbit/s | CoaXPress (4 Channel, CXP-12) / DIN 1.0/2.3 connectors 12.5 Gbit/s | CoaXPress (4 Channel, CXP-12) / DIN 1.0/2.3 connectors 12.5 Gbit/s |
| Sensor diagonal | 37.36 mm | 18.10 mm | 29.5 mm | 22.56 mm | 30.547 mm | 16 mm | 22.03 mm | 21.12 mm |
| Objective Mount | C-Mount, Nikon F-Mount, Nikon F-Mount (for G-series), M42, T2 | C-Mount, Nikon F-Mount, Nikon F-Mount (for G-series), M42, T2 | C-Mount, Nikon F-Mount, Nikon F-Mount (for G-series), M42, T2 | C-Mount, Nikon F-Mount, Nikon F-Mount (for G-series), M42, T2 | C-Mount, F-Mount, M42 Mount, M58 Mount | C-Mount, Nikon F-Mount, Nikon F-Mount (for G-series), M42, T2 | C-Mount, Nikon F-Mount, Nikon F-Mount (for G-series), M42, T2 | C-Mount, Nikon F-Mount, Nikon F-Mount (for G-series), M42, T2 |

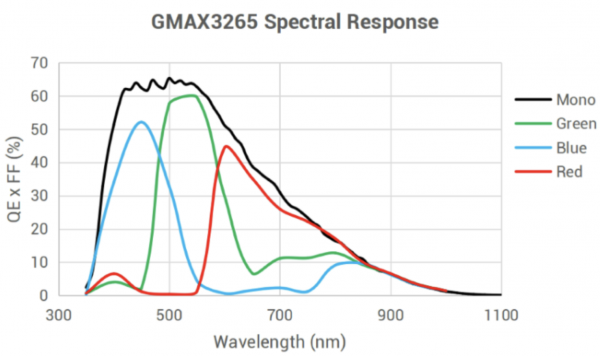

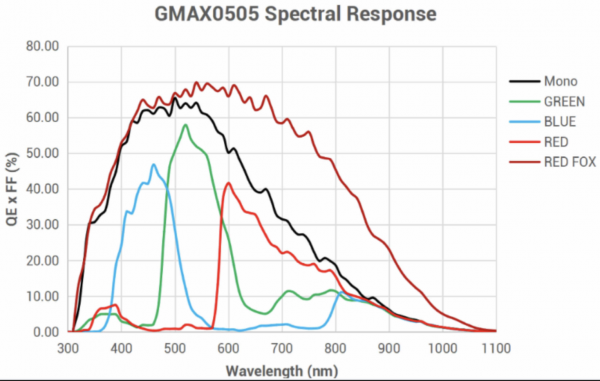

Plus 65 QE:

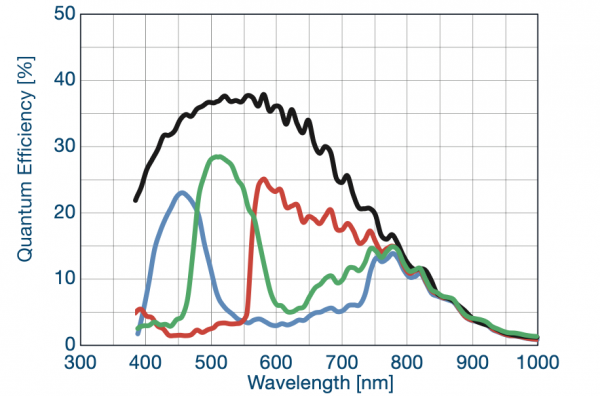

Plus 25 QE:

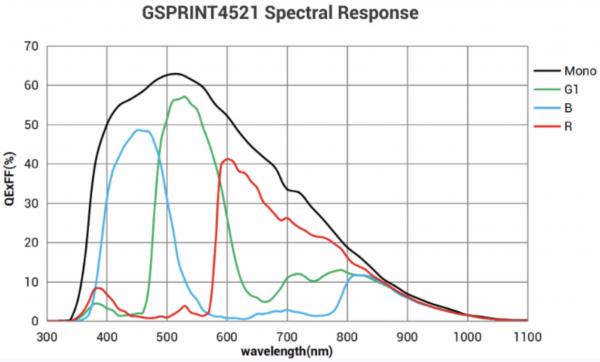

Plus 21 QE:

Plus 9 QE:

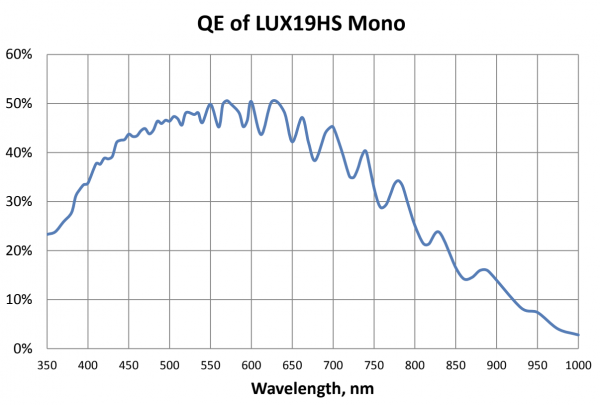

Plus 2 QE:

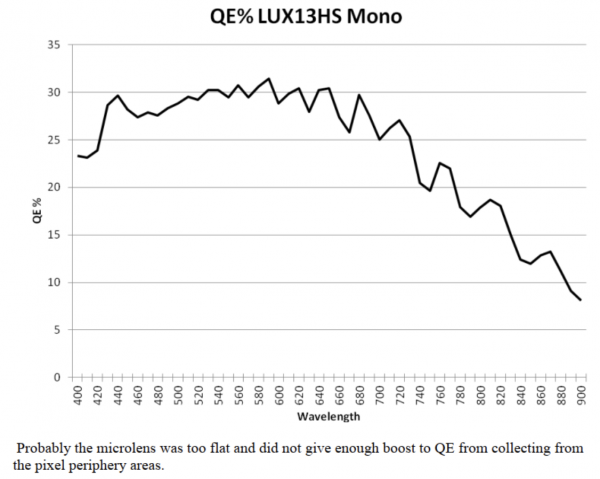

Plus 1HS QE:

Cyclone Camera Applications
- Metrology
- 3D scanning
- Inline inspection
- 2D/3D Metrology
- High Speed Machine Vision
Software
While using the Coaxlink frame grabbers by Euresys:
| Host PC Operating System |
|
| APIs |
|
Cyclone Accessories

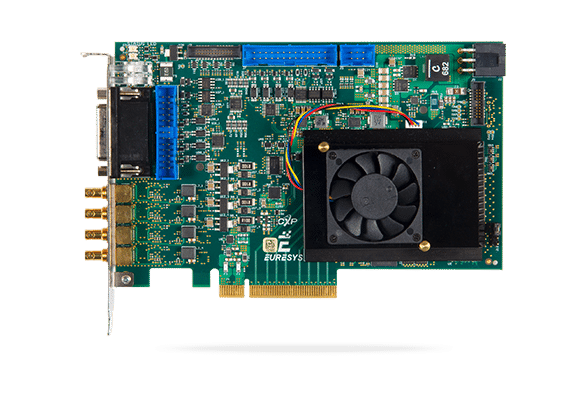

All Cylcone models are compatible with Euresys CXP-12 frame grabbers:
|
Model |
Camera Connection |
Host Connection |
At a Glance |
||||
![]() |
4 CoaXPress CXP-12; 5,000 MB/Sec |
PCIe 3.0 (Gen 3) x8 bus; 6,700 MB/Sec |
|
||||
![]() |
4 CoaXPress CXP-12; 5,000 MB/Sec |
PCIe 3.0 (Gen 3) x8 bus; 6,700 MB/Sec |
|
||||
| End 1 | CoaXPress CXP-6 DIN to DIN Quad Cable | End 2 |
![]() |
![]() |
![]() |




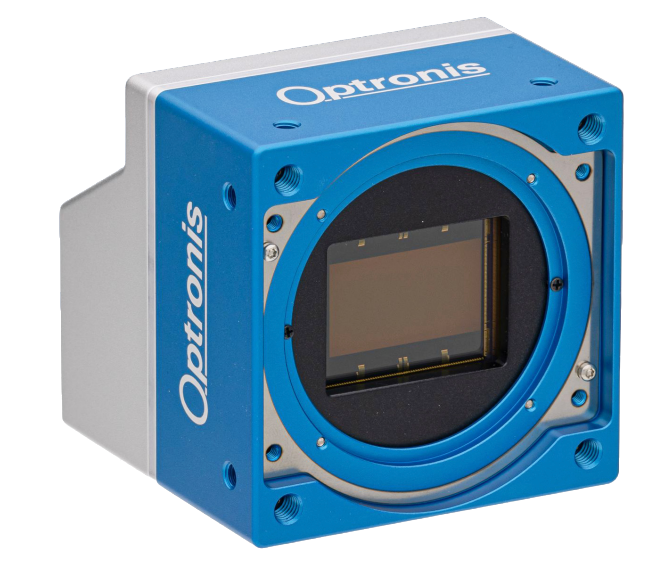

CyclonePlus 9:
