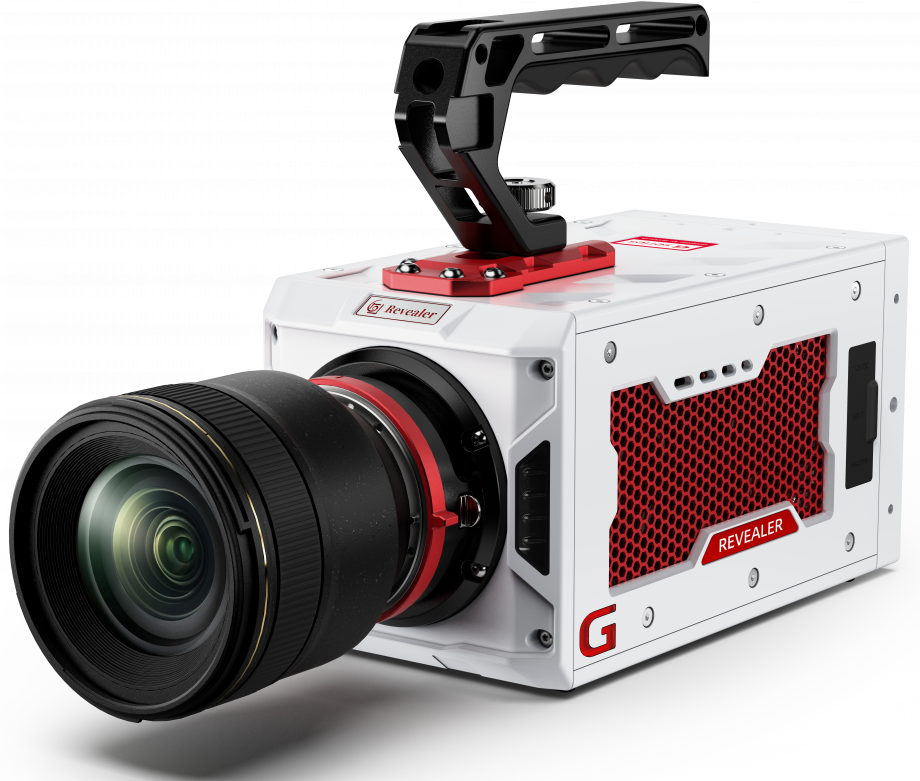

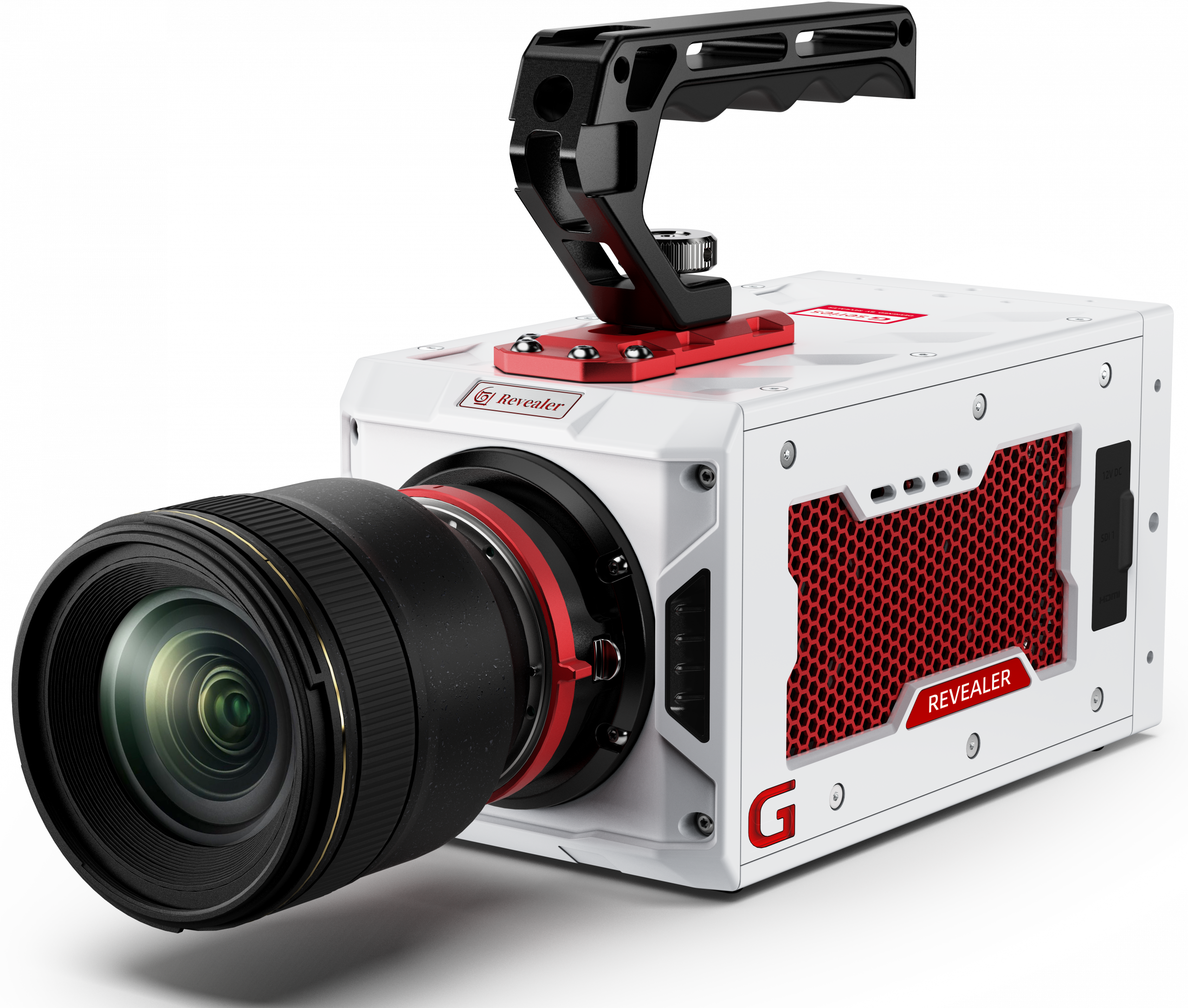

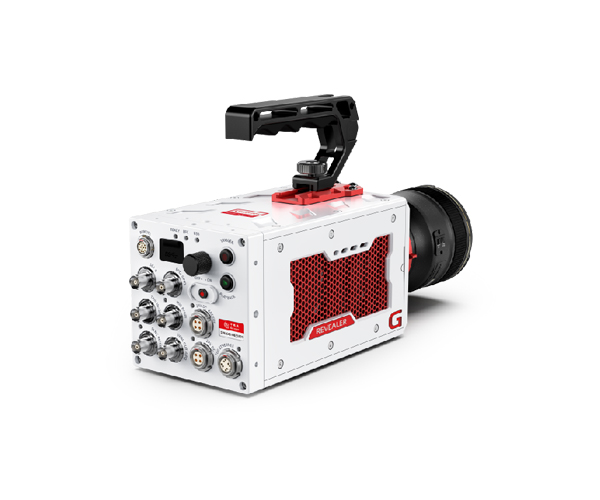

G_Pro Series: High-Resolution 4K/21MP High-Speed Camera

The G_Pro Series is designed for ultra-high-resolution optical analysis over large fields of view. Featuring a global shutter CMOS sensor with light pipe technology, the G_Pro achieves high shutter efficiency and angular response. Upgrading to 4K imaging in a high-speed digital camera provides distinct technical advantages over standard HD definition:

• Expanded Field of View and Spatial Resolution: Captures a broader field of view while preserving critical pixel density. This enables simultaneous tracking of multiple dynamic targets or full-field deformation analysis on larger specimens within a single frame.
• Enhanced Post-Processing and Digital Cropping: Higher pixel counts support substantial digital magnification and region-of-interest cropping with minimal signal degradation—essential for sub-pixel accuracy in Digital Image Correlation (DIC) and quantitative analysis.
• Production-Grade High-Frame-Rate Output: Delivers uncompromising slow-motion playback compatible with ultra-high-definition broadcast and industrial standards, ensuring long-term data usability across demanding imaging pipelines.

When tracking hyper-velocity targets or conducting precise Digital Image Correlation (DIC), sensor shutter design dictates your data integrity. Standard consumer 4K cameras often utilize a rolling shutter, which scans the sensor line-by-line, causing severe geometric distortion (jello effect) on fast-moving objects. To eliminate this, the Revealer G820_Pro integrates a true APS-C sized global shutter CMOS sensor. By exposing every single pixel on the 4096×2048 matrix at the exact same microsecond, it eliminates motion artifacts entirely. This guarantees your full-field strain measurements and ballistic trajectories remain pixel-perfect and mathematically accurate for publication-grade scientific analysis.

Key Technologies Behind Revealer’s High-Resolution Cameras:

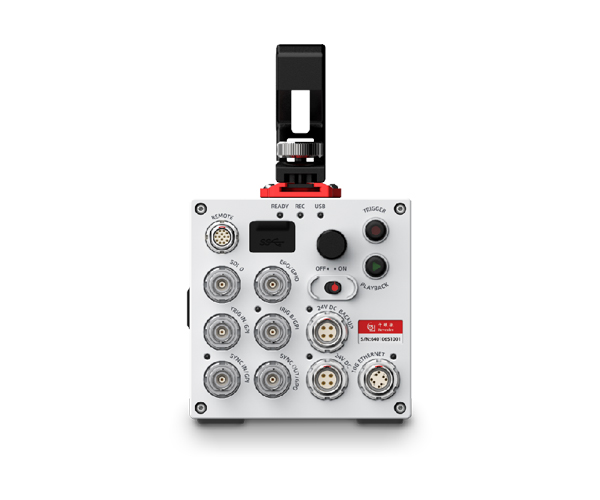

The exceptional performance of the G820_Pro 4K high-speed camera is driven by three core technologies working in unison. First, its large APS-C global shutter CMOS sensor captures distortion-free, perfectly synchronized images at extreme speeds. Second, a proprietary light-guiding optical system maximizes light intake to the sensor, ensuring superior image clarity and signal-to-noise ratio even in challenging lighting. Finally, a built-in 10 Gigabit Ethernet interface provides the essential data pipeline to swiftly transfer massive 4K high-speed sequences to your workstation for immediate analysis or storage. Together, they form the foundation of a true professional high-speed digital camera system.

By leveraging a massive pixel pipeline, the G820_Pro ensures zero distortion in large-scale structural analysis. Our 4K resolution high speed camera seamlessly integrates with mainstream motion analysis software and high-speed imaging ecosystems, providing engineering teams with an end-to-end workflow from ultra-HD image acquisition to precise algorithmic data interpretation.

Industry-Leading Applications for 4k High-Speed Imaging

• Ballistics & Explosive Testing – The 4K resolution allows for high-pixel-density tracking of small fragments over a wide trajectory, ensuring no detail is lost in large-scale ballistic tests.
• Digital Image Correlation (DIC) – Unlock sub-pixel precision with a large field of view. The G820_Pro is the ideal tool for full-field strain and deformation analysis in material science.

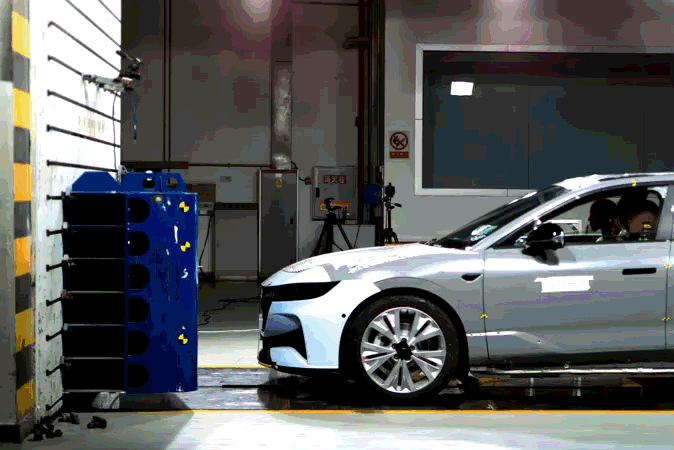

• Automotive Safety Engineering – Capture full-vehicle crash tests in 4K clarity, providing synchronized data for complex impact analysis and regulatory documentation.

Managing Massive 4K Data Pipelines: Dual-Stage High-Speed Storage Architecture

Capturing 4K resolution (4096 × 2048) at 2000 frames per second generates an immense data throughput of over 24 Gigabytes of raw data every single second. To prevent frame dropping and eliminate laboratory downtime, the Revealer G820_Pro utilizes a high-efficiency dual-stage storage workflow:

• Ultra-Fast RAM Buffer – With 96GB or 192 GB Options, it acts as the immediate high-bandwidth landing zone; captures the high-speed event with zero latency or frame drops.
• Non-Volatile NVMe SSD – Woth 10TB Internal Storage, it allows researchers to instantly dump the RAM buffer internally without waiting for slow PC transfers, ensuring immediate readiness for consecutive test runs.

Quick Calculation for Researchers: With a 192GB RAM configuration, the camera provides a continuous recording window of approximately 8 seconds at maximum 4K throughput, which is more than sufficient to capture critical microsecond phenomena in ballistics or automotive crash tests.
