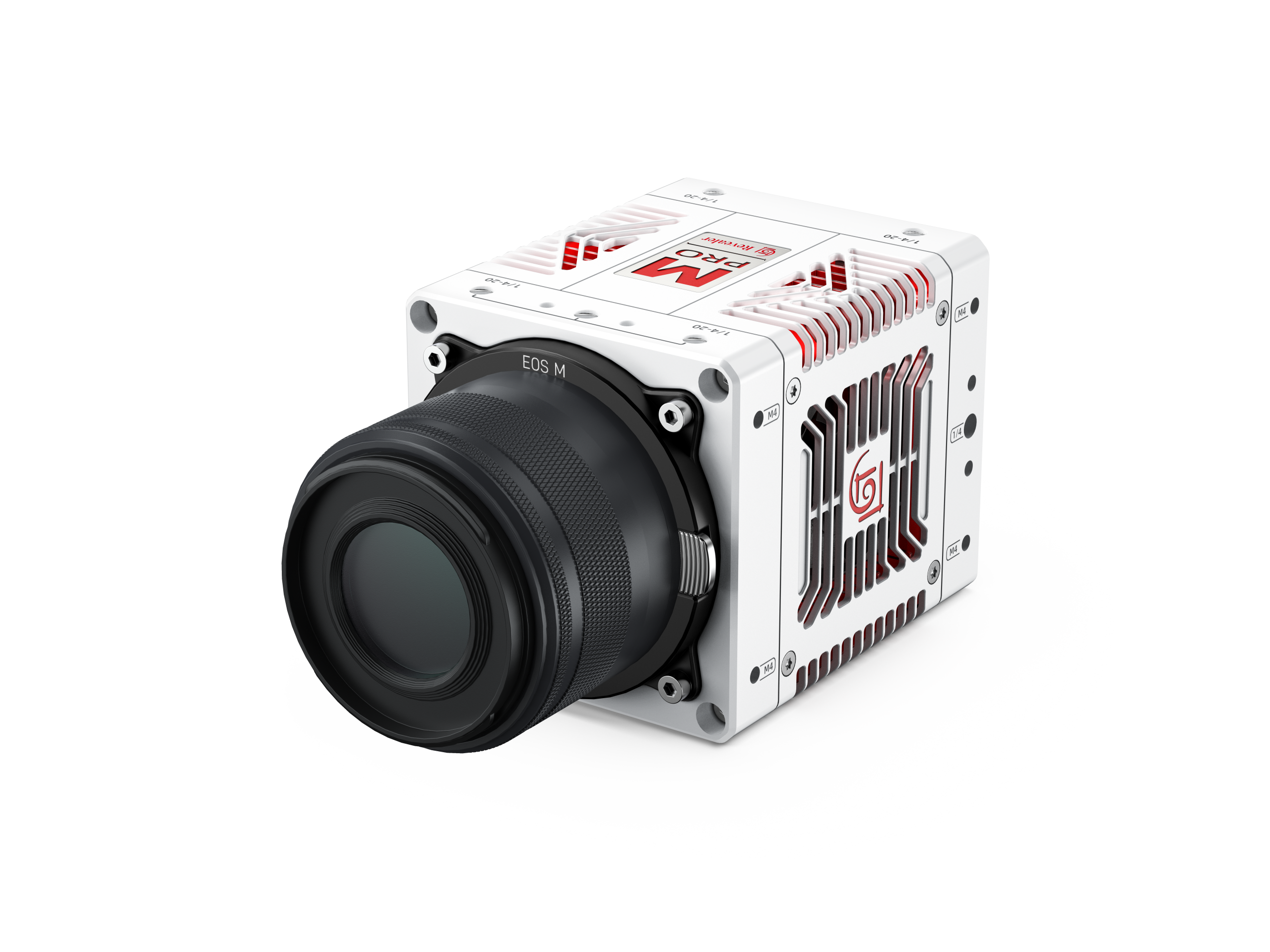

Revealer | High Speed Camera M Pro Series

Sensor Type

Global Shutter CMOS

Spectral Sensitivity Range

350 nm - 1100 nm

Sensor Resolution

1920 x 1080

Max Frame Rate

1200 - 4000 fps

Min. Exposure

100 ns

Data Interface

10Gb / 1Gb Ethernet

Tag: CAMERAS: High-Speed Brand: Revealer

10Gb M Pro Series: Ultra-Lightweight 10G High-Speed Cameras

The 10Gb M Pro Series high-speed cameras combine high-speed acquisition with ultra-portable design. Weighing just 800 g with compact physical dimensions of 75 x 75 x 90 mm, the M Pro Series is engineered for seamless integration into space-constrained environments, airborne testing, and mobile field operations. Equipped with high-speed 10 Gigabit Ethernet, these cameras ensure rapid data export to maximize test turnaround times.

Featuring Full HD (1920 x 1080) recording up to 3,200 fps, minimum exposure times down to 100 ns, global shutter accuracy, and expandable internal flash memory up to 2 TB, the M Pro Series delivers continuous high-frame-rate performance without requiring an external recording station during testing.

Key Advantages

Ultra-Lightweight & Ultra-Compact: Weighs only 800 g with a miniaturized75 x 75 x 90 mm housing for effortless mounting and system integration.
High-Speed 10Gb Ethernet Transfer: Rapid data export over 10 Gigabit Ethernet dramatically reduces offload delays.
High-Speed Full HD Performance: Up to 3,200 fps at $1920 \times 1080$ resolution (M230M/C Pro) and up to 4,000 fps at $1280 \times 860$ (M136M/C Pro).
Microsecond Exposure Precision: Minimum exposure times down to 100 ns with global shutter eliminate motion blur.
Onboard Non-Volatile Memory: Customizable internal flash storage from 128 GB up to 2 TB for standalone, offline recording.
Extensive Wireless & Video Outputs: Features 3G-SDI and HDMI video outputs (1080p@50 fps), Wi-Fi connectivity, and direct physical record buttons.
Extreme Environmental Resilience: IP64 ingress protection, 30g shock resistance, 7.5 Grms vibration integrity, and optional customizable wide operating temperatures from -40°C to 70°C.

Model	M230M/C Pro	M220M/C Pro	M210M/C Pro	M120M/C Pro	M136M/C Pro
Sensor Technology	Global Shutter CMOS	Global Shutter CMOS	Global Shutter CMOS	Global Shutter CMOS	Global Shutter CMOS
Bit Depth	10-bit	10-bit	10-bit	10-bit	10-bit
Max Resolution	1920 x 1080	1920 x 1080	1920 x 1080	1280 x 1024	1280 x 860
Aspect Ratio	16:9 (Full HD)	16:9 (Full HD)	16:9 (Full HD)	5:4 (Near-Square)	~3.2
Full Frame Rate	3,200 fps	2,200 fps	1,200 fps	2,300 fps	4,000 fps
Pixel Thoughput	6.64 GPixels/s	4.56 GPixels/s	2.49 GPixels/s	3.01 GPixels/s	4.40 GPixels/s
Min. Exposure Time	100 ns	100 ns	100 ns	100 ns	100 ns
Spectral Range	350 nm ~ 1100 nm (UV-Vis-NIR)	350 nm ~ 1100 nm (UV-Vis-NIR)	350 nm ~ 1100 nm (UV-Vis-NIR)	350 nm ~ 1100 nm (UV-Vis-NIR)	350 nm ~ 1100 nm (UV-Vis-NIR)
Image Controls	Auto Exposure, EDR, Trigger	Auto Exposure, EDR, Trigger	Auto Exposure, EDR, Trigger	Auto Exposure, EDR, Trigger	Auto Exposure, EDR, Trigger
Primary Interface	10 GbE (1 GbE backward)	10 GbE (1 GbE backward)	10 GbE (1 GbE backward)	10 GbE (1 GbE backward)	10 GbE (1 GbE backward)
Video Outputs	3G-SDI, HDM	3G-SDI, HDM	3G-SDI, HDM	3G-SDI, HDM	3G-SDI, HDM
Control Interface	RS-422	RS-422	RS-422	RS-422	RS-422
Lens Mound	EF Standard; F/C Optional	EF Standard; F/C Optional	EF Standard; F/C Optional	EF Standard; F/C Optional	EF Standard; F/C Optional
Dimensions (W x H x D)	75 X 75 X 90 mm	75 X 75 X 90 mm	75 X 75 X 90 mm	75 X 75 X 90 mm	75 X 75 X 90 mm
Weight	800 g	800 g	800 g	800 g	800 g
Included Software	RCC4 Software Included	RCC4 Software Included	RCC4 Software Included	RCC4 Software Included	RCC4 Software Included
