IndiGo | VIS-NIR Handheld Compact Spectrometer
Wavelength Range
400 nm - 1000 nm
Resolution
2.0 nm (FWHM)
Grating
300 Lines/mm
Integration Time
1 ms - 30 s (averaging is possible)
Connectivity
USB-C and Bluetooth
Dimensions
86 mm x 45 mm x 53 mm (107 g)
IndiGo VIS-NIR Handheld Compact Spectrometer: The Power of Spectroscopy at Your Fingertips
The IndiGo VIS-NIR handheld spectrometer is a compact modular device that fits in the palm of your hand. This handheld spectrometer can be used for many different applications: it allows measurement of absorption, emission, or transmission spectra from 400 nm to 1000 nm with a standard resolution of 2 nm (FWHM).
The IndiGo VIS-NIR handheld spectrometer is a very versatile scientific tool that can easily be integrated in experimental setups to perform many types of measurements involving different types of light sources, cuvette and other sample holders, optical fibers, lenses, and many other elements.
Every IndiGo VIS-NIR handheld spectrometer comes with a powerful PC desktop application, but it is also compatible with Android tablets and smartphones via Bluetooth 5.0 connection for increased mobility.

Discover Modularity

With its optional modules, the IndiGo handheld spectrometer can become a fluorescence spectrometer, a reflection spectrometer or a chemical analyzer that fits in your pocket. To learn more about the many available modules, visit the accessories tab.
You can also visit our application page to discover all of the ways the IndiGo and its modules can be used.
| Physical | |
|---|---|
| Model | IndiGo VIS-NIR |
| Dimension | 86mm x 45mm x 53mm |
| Weight | 107g |
| Spectrometer | |
|---|---|
| Model | IndiGo UV-VIS |
| Sensor | CMOS Sony IMX334 Monochrome. Pixel size: 2μm. 3840x2160 |
| Wavelength Range | 400 - 1000 nm |
| Spectral Resolution | 2nm (FWHM) |
| Slit (WxH) | 15 μm x 3 mm |
| Grating | 300 lines/mm |
| Integration Time Range | 1ms-30s (multi cycles acquisition available) |
| System Configurations | |
|---|---|
| Model | IndiGo VIS-NIR |
| Battery | Li-polymer. 1000mAh. 10h in operation & 24h in standby mode |
| Data Format | .txt – .csv - .spc |
| Power | 5V-750mA |
| Interfaces | |
|---|---|
| Model | IndiGo VIS-NIR |
| Bluetooth | 5.0 Bluetooth low energy |
| USB | USB-C |
| Software | SpectroLab PC or Mobile |
| Calibration | |
|---|---|
| Wavelength | Scientific calibration with Hg/Ar lamp or fast calibration with fluorescent lamp |
| Intensity | Available in option |

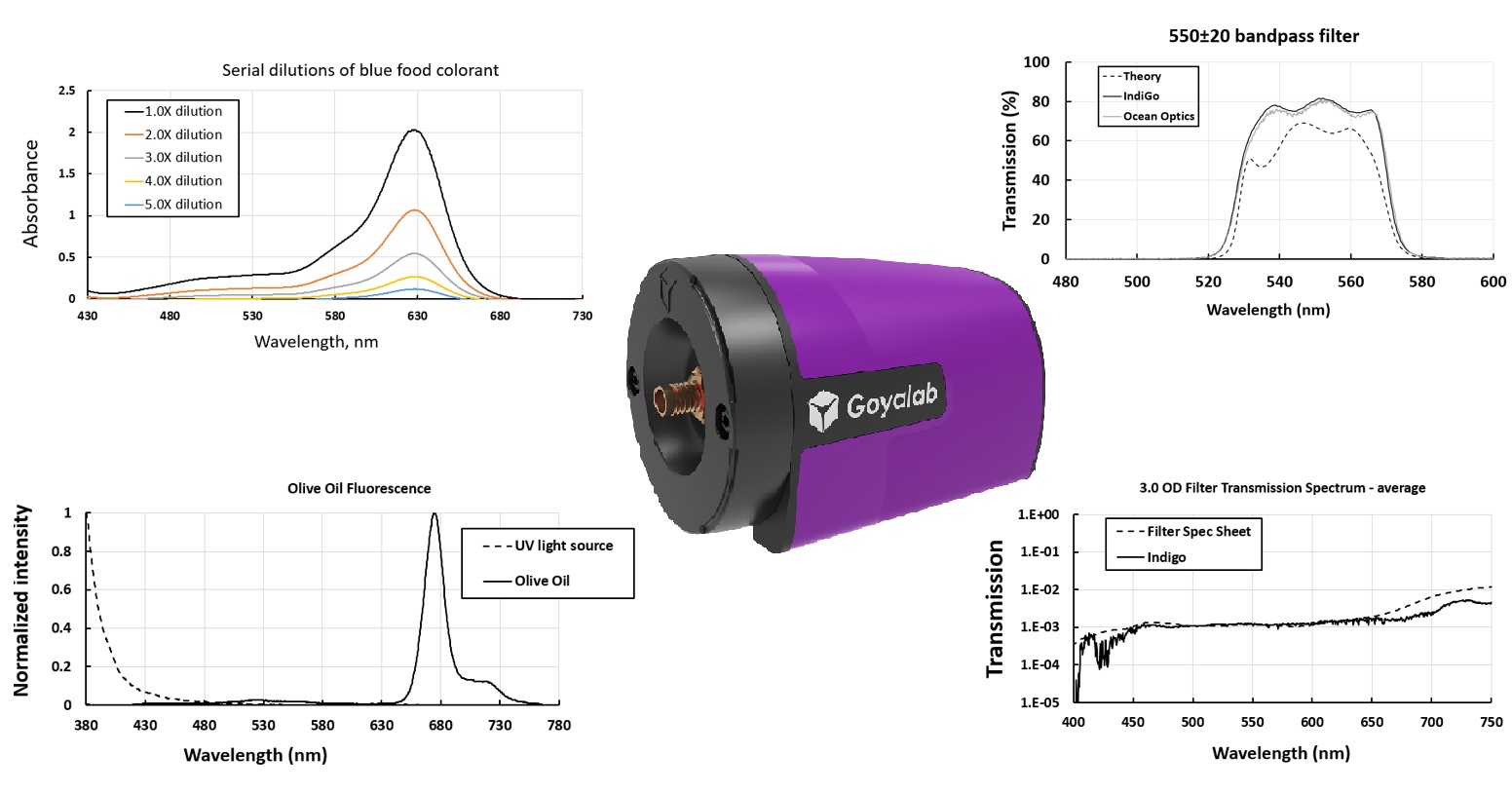

Applications of IndiGo VIS-NIR Spectrometer
- Chemical Analysis Involving Absorption, Fluorescence, and Reflection
- Education and Research
- Gemology and Jewelry
- Lighting and Filters Characterization and Identification
- Traceability and Authentication
- And many more…

Axiom Optics Blogs

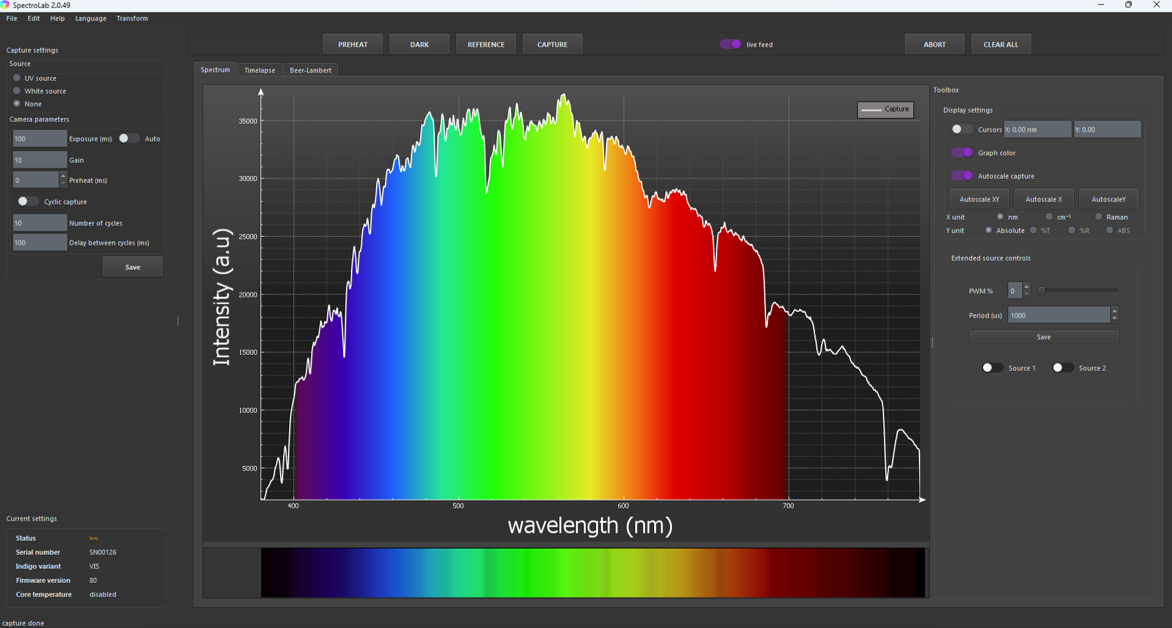

Spectrolab
IndiGo VIS-NIR is delivered with the SpectroLab application
- SpectroLab PC: A PC application for Windows to acquire and analyze spectra (USB-C connection)
- SpectroLab Android: An Android application for smartphone and tablet to acquire and analyze spectra (Bluetooth connection)
Goyalab spectrometers come factory calibrated. SpectroLab also offers the possibility to re-calibrate on-site using an Hg/Ar lamp or a fluorescent lamp.

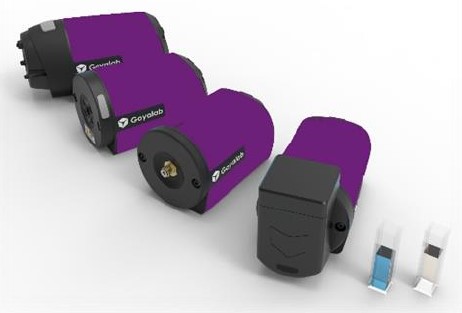

IndiGo Accessories

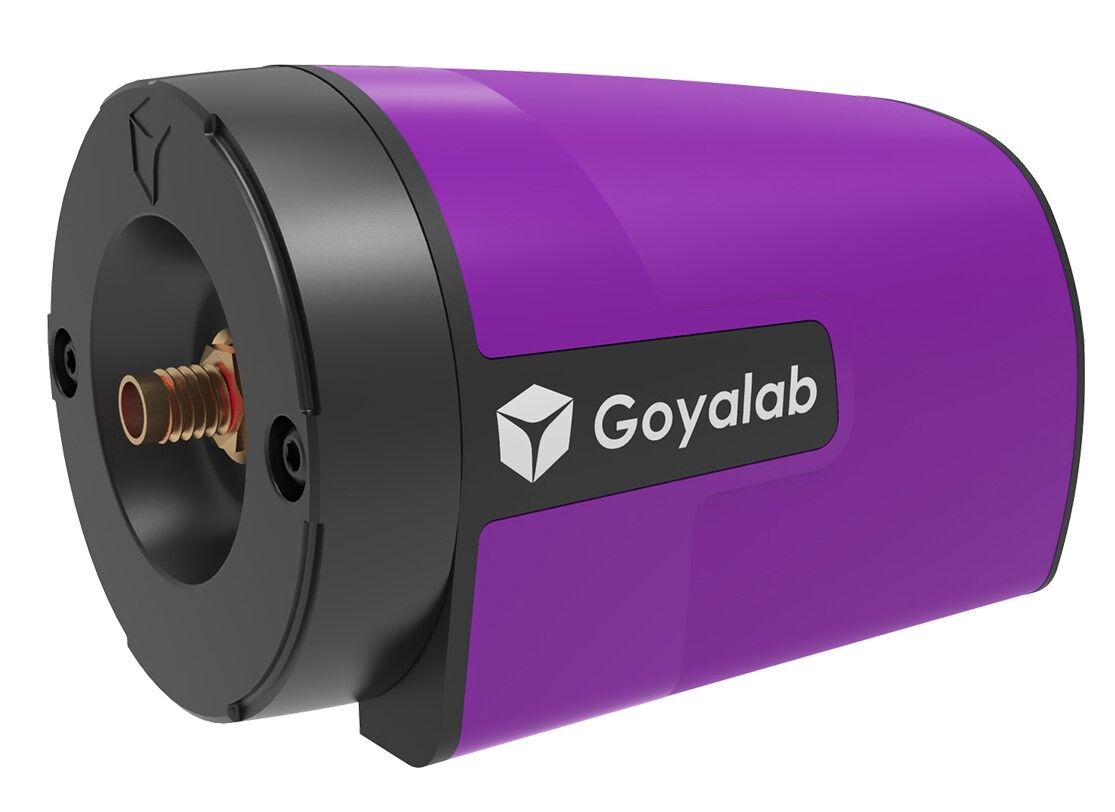

SMA-905 Optical Fiber Adaptor

This module allows the user to adapt an optical fiber with a standard SMA-905 connector.

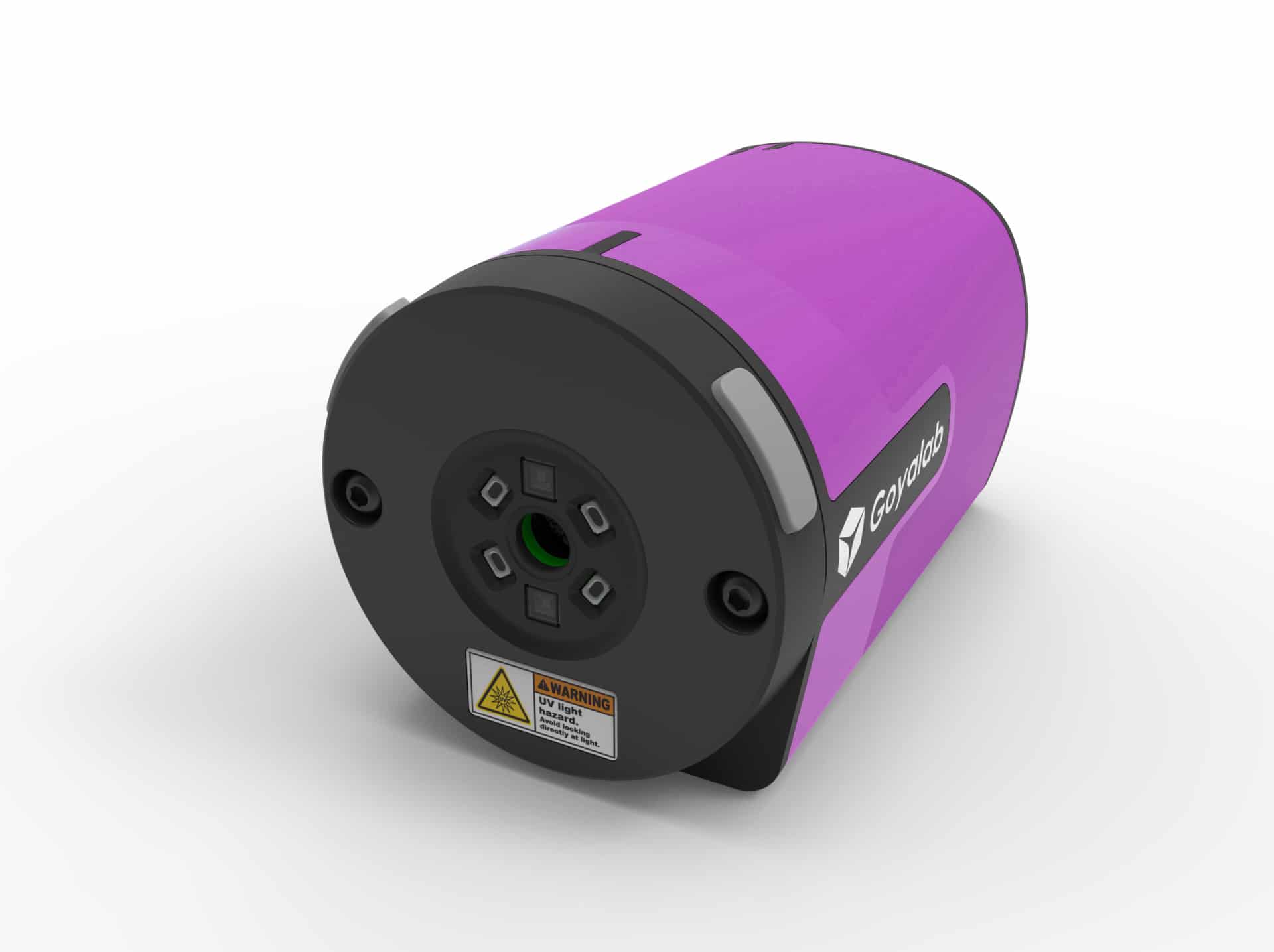

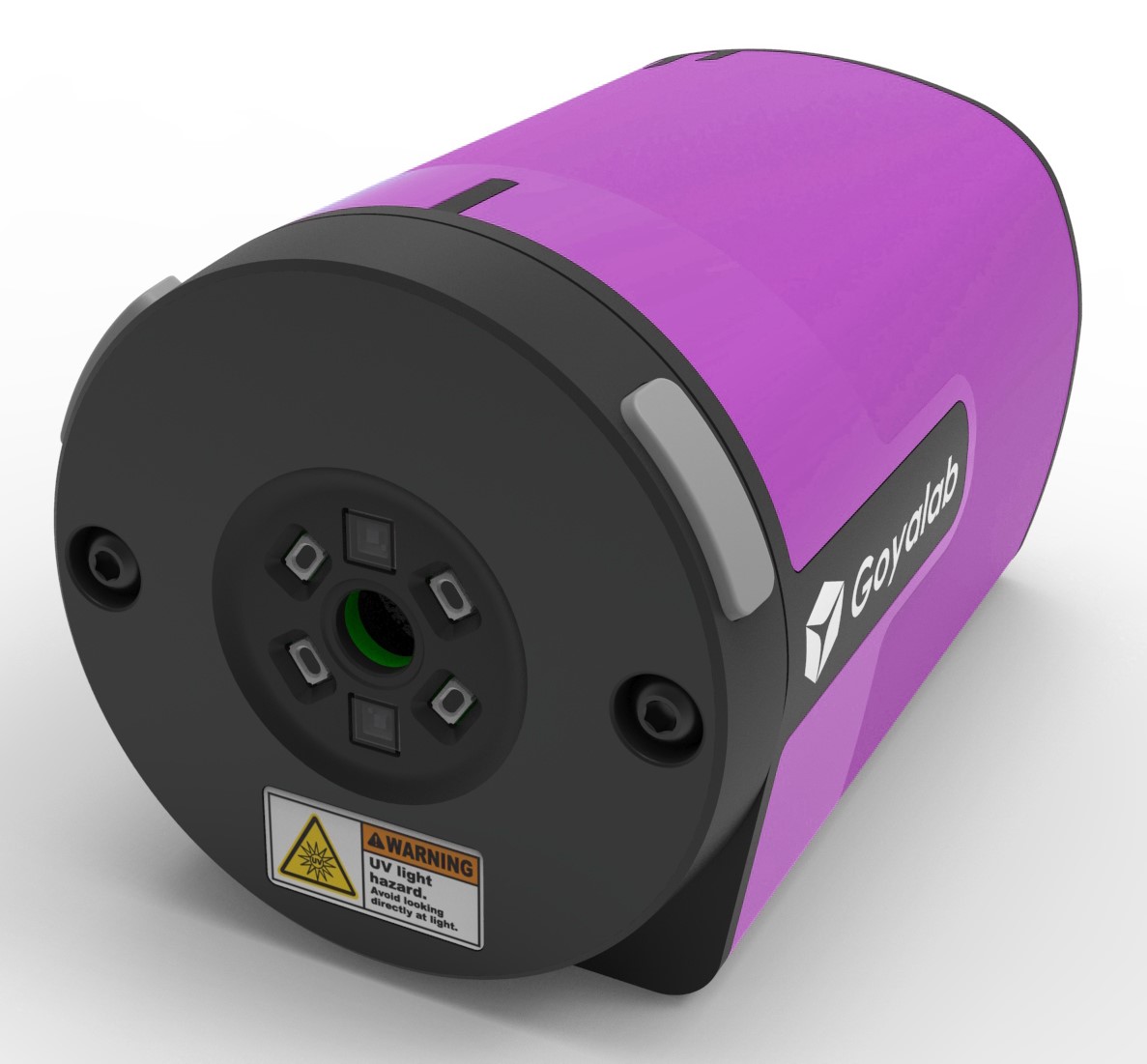

LED Excitation Module

The LED module allows the user to add a light source to the IndiGo. This LED module is supplied in standard with 6 UV-A LEDs at 365nm. It can contain up to 2 different light sources that can be fully customized in function of the needs.
This module is very useful for measuring fluorescence spectra in various products such as food products, fluorescent inks or taggants, or various impurities, even at trace level.

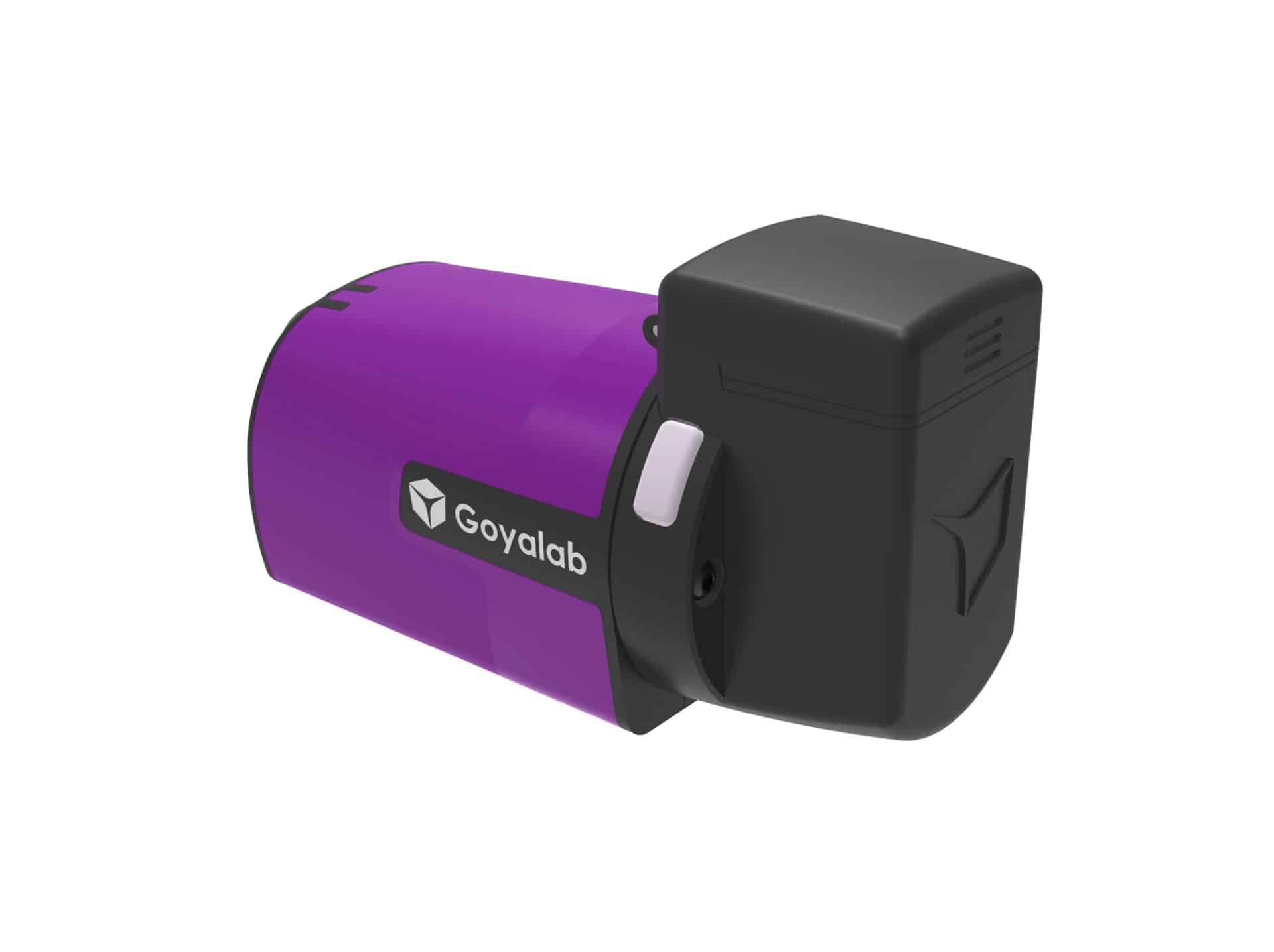

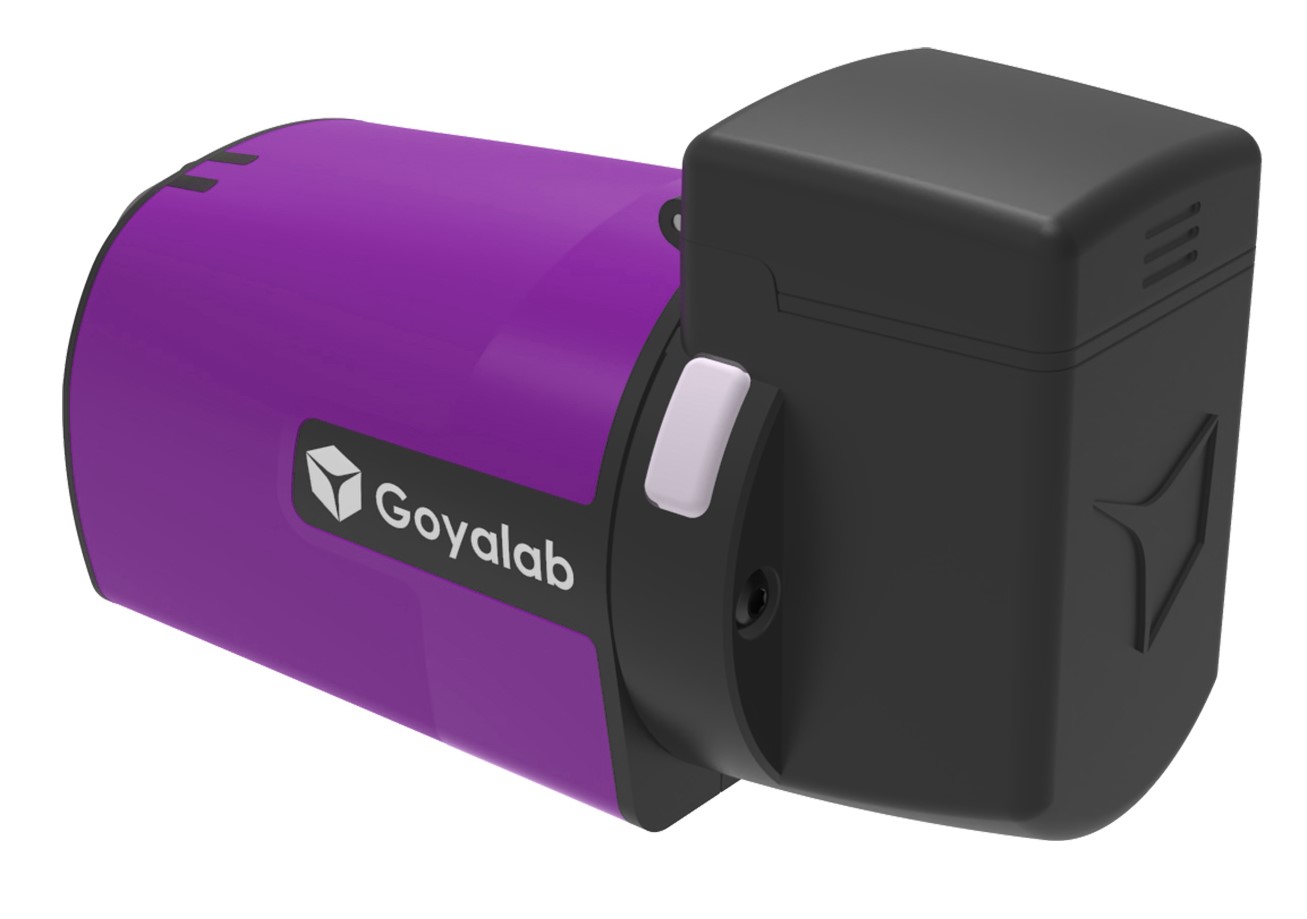

Cuvette Holder Module

This module allows the user to measure spectra in liquids thanks to its cuvette holder. This module offers 2 types of lighting: a white LED for absorption and UV- A LEDs for fluorescence. This module is very useful for qualitative and quantitative chemical analysis involving absorption and fluorescence.
GoLight White Flat Spectrum Broadband Light Source

The GoLight provides a flat and continuous spectrum on the visible range and can be instantaneously fixed to the IndiGo thanks to its magnetic setting. You can purchase the GoLight on our online store by clicking HERE.
